2pcs 3S 12.6V BMS Li-ion Battery Protection Board for Drills

ZUIDID 3S 12.6V 6A BMS Li-ion Battery Protection Board — 2-Pack

Keep your 18650 lithium battery packs running safely and efficiently with this 2-pack of ZUIDID 3S 12.6V BMS (Battery Management System) Protection Boards. Designed for 3-cell series lithium-ion configurations, these compact PCB boards guard against overcharge, over-discharge, overcurrent, and short-circuit events — making them an ideal upgrade or replacement for cordless drills, rotary tools, electric angle grinders, and other 12V handheld power equipment.

With CE certification and a wide operating temperature range of -40°C to +85°C, these boards deliver reliable performance in both workshop and field conditions. At just 33.7 × 36.5 mm, they fit neatly inside standard 18650 battery holders without adding bulk.

Made in Mainland China.

Key Features

• 4-in-1 Protection: Overcharge, over-discharge, overcurrent, and short-circuit protection in a single board
• Balanced Charging: Enhances cell balance for longer pack lifespan

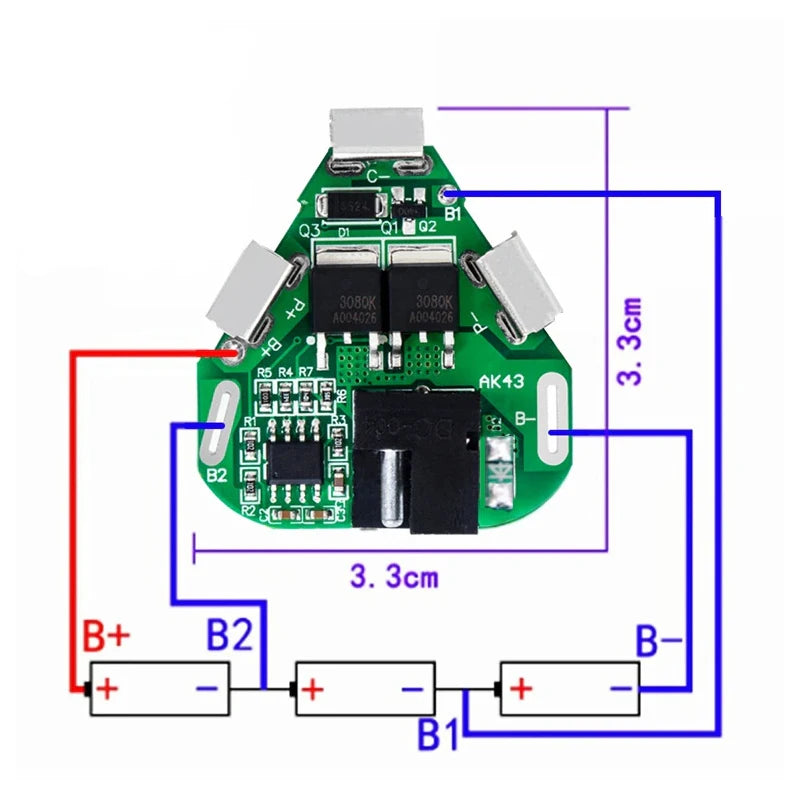

• 3S Configuration: Supports 3 lithium-ion cells in series (12.6V nominal pack)
• CE Certified: Meets European conformity standards
• Wide Temperature Range: Operates from -40°C to +85°C
• Compact Form Factor: 33.7 × 36.5 mm — fits standard 18650 holders
• Value Pack: 2 boards included per order

Technical Specifications

Compatible Applications

• Cordless / handheld lithium drills
• Rotary tools and accessories
• Electric angle grinders
• DIY 18650 battery pack builds
• 12V DC electrical tool power systems

What's in the Box

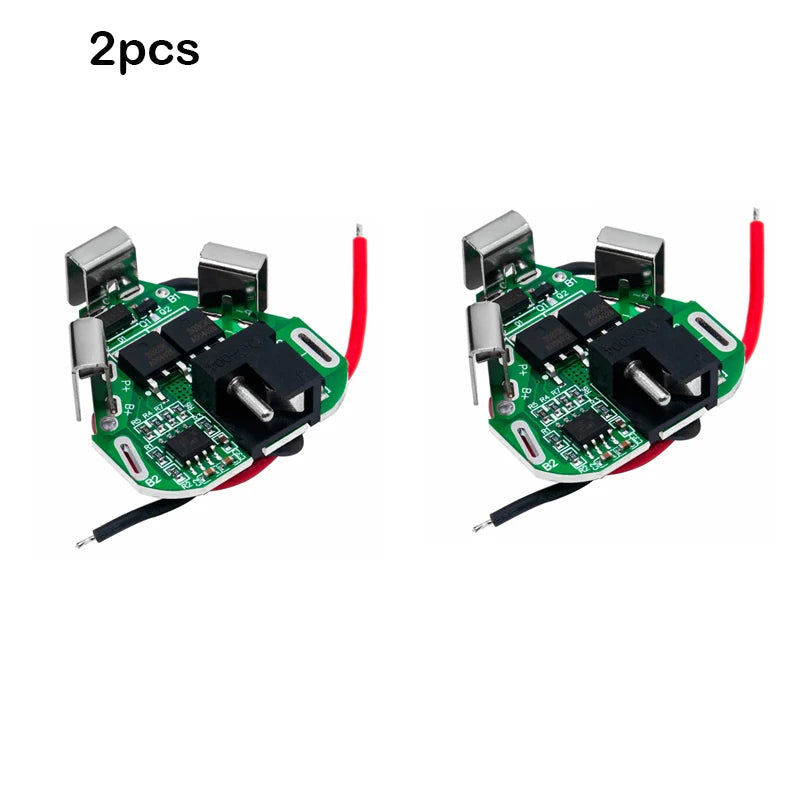

• 2 × 3S 12.6V 6A BMS Li-ion Battery Protection Board

You May Also Like

• Stainless Steel Flat Disc Spacer Beads Gold Silver – 20-50pcs
• Stainless Steel Cord End Caps with Loop – 6pcs Jewelry Findings

Note: Manual measurement may result in a 1–2 mm variance. Colors in product images may differ slightly from the actual item due to monitor calibration differences.

Learn more: ENERGY STAR product efficiency guidance

Frequently Asked Questions

Q: What does a 3S BMS protection board do for my lithium battery pack?

A: A 3S BMS (Battery Management System) protection board monitors and manages three lithium-ion cells connected in series. It actively prevents overcharging (above 4.25V per cell), over-discharging (below 2.5V per cell), overcurrent draw, and short-circuit events — all of which can damage cells or create safety hazards. This ZUIDID board adds all four protections plus cell-balancing functionality to your 12.6V 18650 battery pack.

Q: Is this BMS board compatible with standard 18650 lithium-ion cells?

A: Yes. This board is specifically designed for 3-cell series (3S) configurations using standard 18650 Li-ion cells. It supports a charging voltage of 12.6V–13V and is commonly used in DIY battery packs for cordless drills, rotary tools, and other 12V DC power tools.

Q: What is the maximum current this protection board can handle?

A: The board supports a maximum operating current of 8A continuously, a static working current of 5–15A, and a transient peak current of 40A ± 5A. The overcurrent protection kicks in at 26A ± 2A, and the short-circuit protection triggers within 300 microseconds, keeping your battery pack and connected tools safe.

Q: How many boards do I receive in one order?

A: Each order includes 2 BMS protection boards, giving you a spare on hand or enough to build two separate battery packs.
