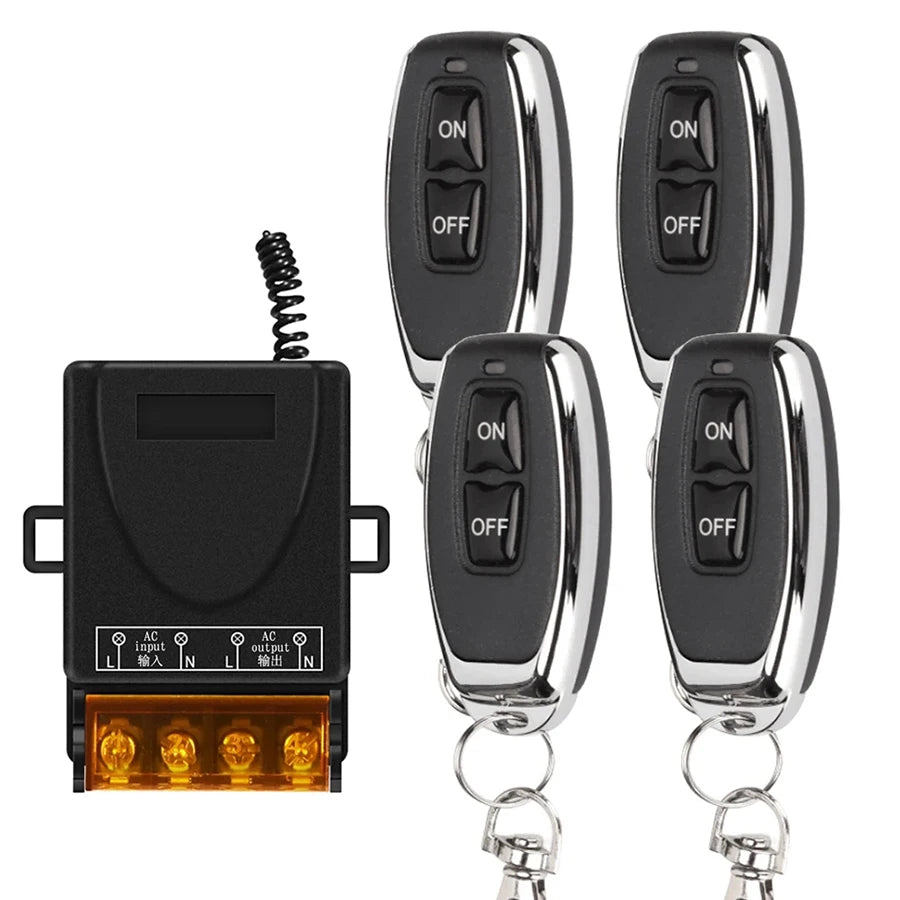

433MHz Wireless Remote Control Relay Switch – 30A Universal
Take full command of your water pumps, motors, LED lighting, and other electrical appliances from up to 100 meters away with this versatile 433MHz wireless relay switch. Featuring learning-code technology, it pairs effortlessly with virtually any 433MHz remote and supports multiple operating modes — making it one of the most flexible relay solutions available for home automation, irrigation systems, industrial setups, and more.
Made in Mainland China.
Key Features
- Wide Voltage Compatibility: Receiver operates on AC 75–220V or DC 9–72V, covering a broad range of electrical systems.
- Long-Range Control: 433MHz frequency transmitter reaches up to 100 meters (open field) for true hands-free convenience.
- 30A Peak / 15A Rated Load: Handles high-demand appliances; note that the rated continuous load should not exceed 15A.
- Learning Code Technology: Pairs quickly with your existing 433MHz remotes — no complicated programming required.
- Multiple Operating Modes: Choose from Momentary, Self-Locking (Toggle), Interlocking (Latched), and Delay (5/10/15 seconds) modes.
- Universal Application: Ideal for water pumps, motors, LED strips, fans, and other AC/DC appliances.
- Easy Code Reset: Hold the learning button for 8 seconds to clear all stored codes instantly.
Technical Specifications
| Transmitter Operating Voltage | DC 12V |
| Transmitting Frequency | 433MHz |
| Encoding Type (Transmitter) | Fixed Code |
| Receiver Sensitivity | > -105dB |
| Transmission Distance | Up to 100M (Open Field) |

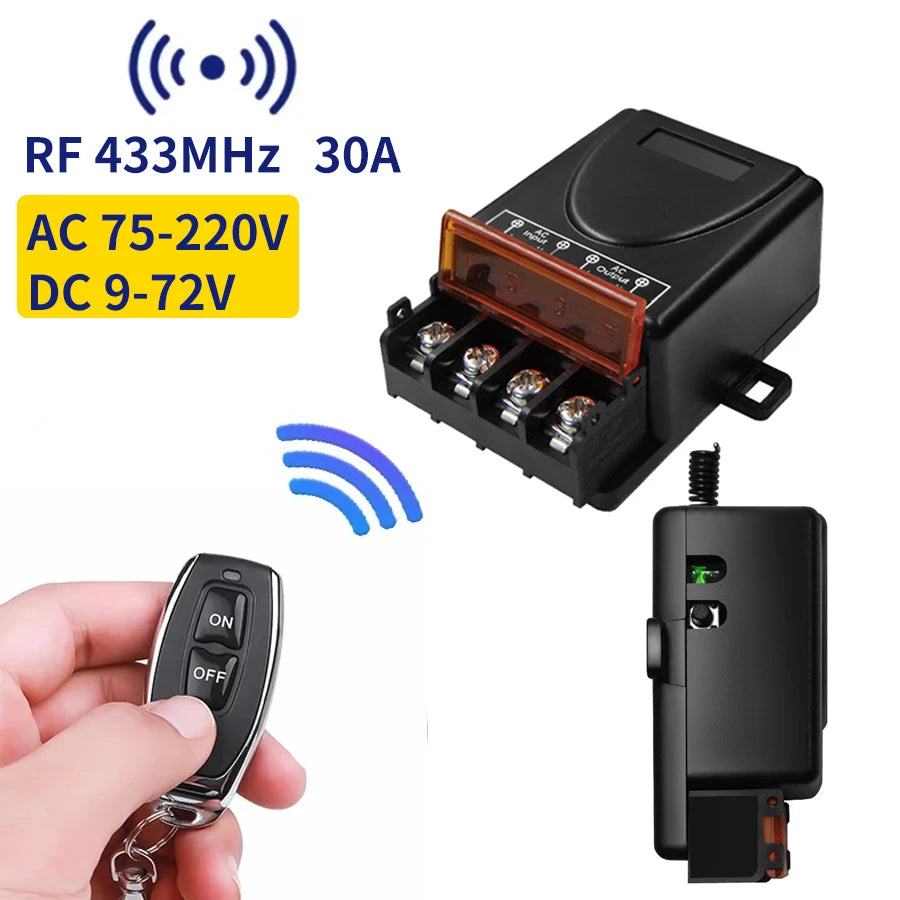

| Receiver Operating Voltage | AC 75–220V / DC 9–72V |
| Encoding Type (Receiver) | Learning Code |
| Peak Load Current | 30A |
| Rated Continuous Load | ≤ 15A |
| Material | Plastic |
| Model | RF 433MHz |
Code Learning Modes — Step by Step
- Momentary Mode: Press the learning button once (LED flashes once), then press any remote button. LED flashes 3 times to confirm pairing.
- Self-Locking (Toggle) Mode: Press the learning button twice (LED flashes twice), then press any remote button. LED flashes 3 times to confirm.
- Interlocking (Latched) Mode: Press the learning button three times (LED flashes 3 times), press the ON button then the OFF button on the remote. LED flashes 3 times to confirm.
- Delay 5 / 10 / 15 Seconds Mode: Press the learning button 4, 5, or 6 times respectively. Press a remote button to pair. The relay will automatically disconnect after the set delay.
To clear all stored codes: Press and hold the learning button for 8 seconds until the LED flashes once. Always clear codes before switching between modes.
Explore More DIY Electronics & Components
Looking for more components for your DIY projects? Check out our Metal Q Ring Spring Clasps – Gold & Silver Plated Connectors and our Stainless Steel Cord End Caps with Loop for other versatile hardware options.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What is the maximum continuous load current for this 433MHz relay switch?
A: While the relay is rated at 30A peak, the recommended continuous rated load current is 15A or less. Using the relay within the 15A rated limit ensures reliable long-term performance and safe operation of connected appliances like water pumps and motors.
Q: Can I use my existing 433MHz remote with this relay receiver?
A: Yes! The receiver uses learning-code technology, which means it can pair with most standard 433MHz fixed-code remotes. Simply follow the code-learning procedure for your preferred mode (Momentary, Toggle, Latched, or Delay) and the receiver will recognize your remote's signal.
Q: What operating modes does this wireless relay switch support?
A: This relay switch supports four operating modes: Momentary (output active only while button is held), Self-Locking/Toggle (press once to turn on, again to turn off), Interlocking/Latched (dedicated ON and OFF buttons), and Delay mode (automatically disconnects after 5, 10, or 15 seconds). Clear stored codes before switching between modes.
Q: What voltage ranges are compatible with this relay switch receiver?
A: The receiver is compatible with both AC 75–220V and DC 9–72V, making it suitable for a wide variety of electrical systems and appliances worldwide, including water pumps, LED lighting, motors, and fans.
