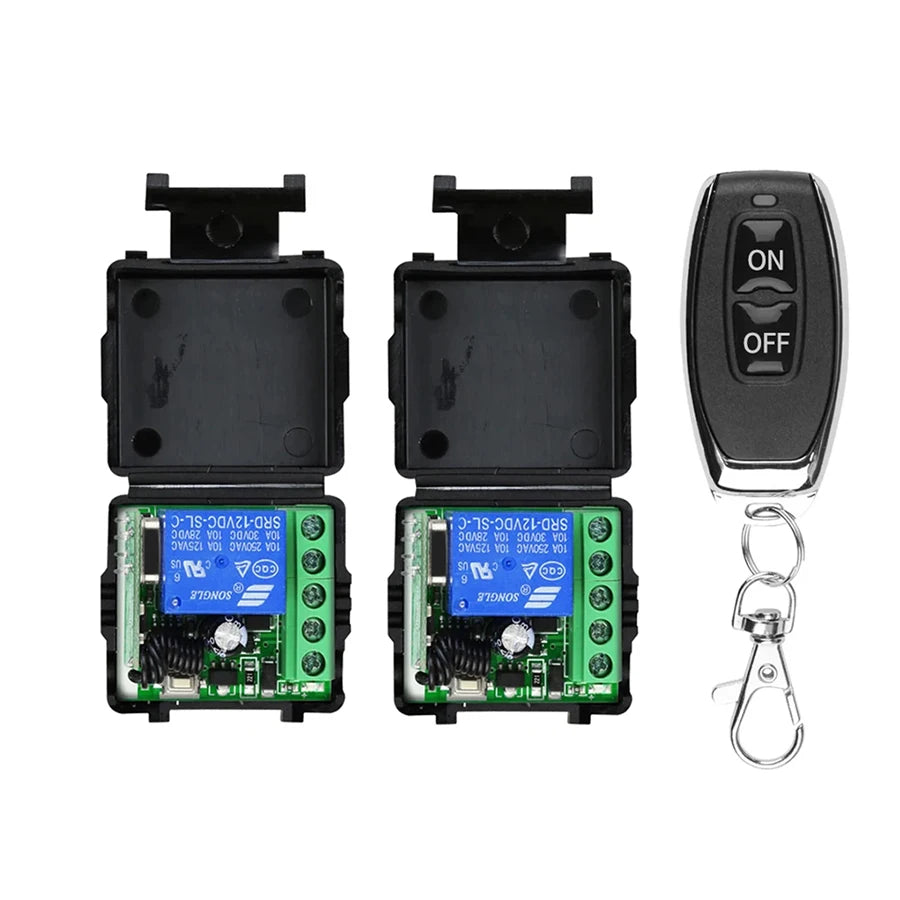

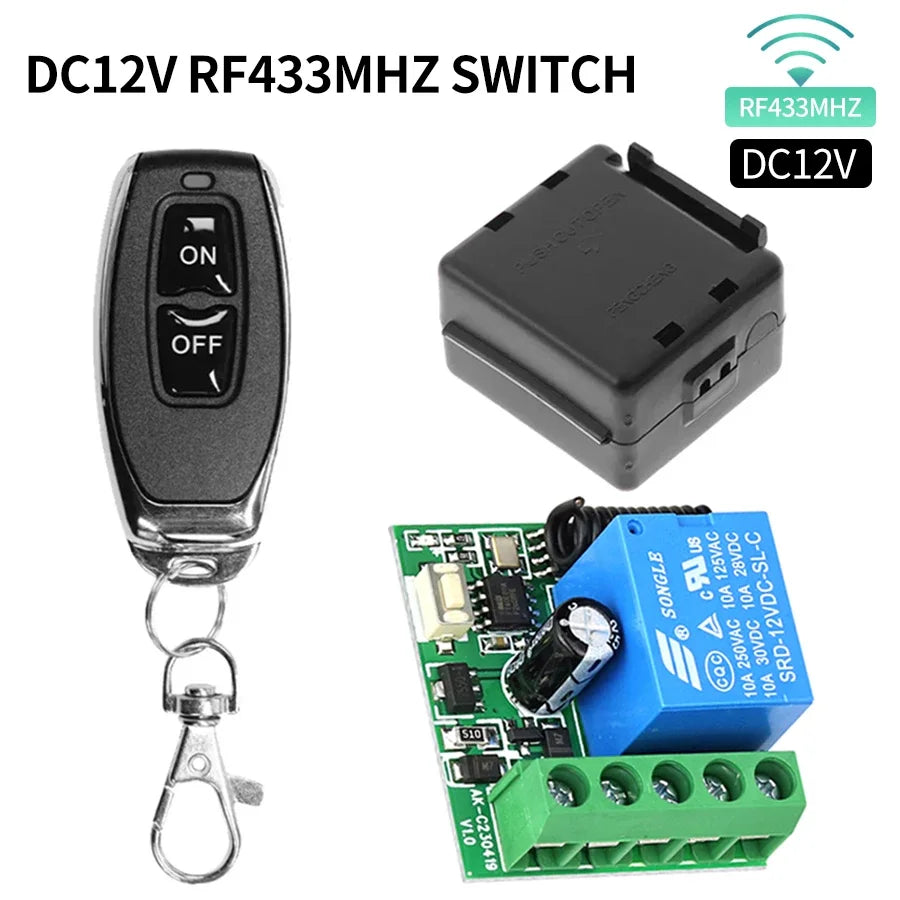

DC 12V RF 433MHz Relay Receiver Remote Control Switch Module

Universal DC 12V RF 433MHz Remote Control Relay Receiver Module

Take full wireless control of your garage door, LED lighting, gate, or any 12V-powered device with this compact RF 433MHz relay receiver module. Supporting four flexible working modes and compatible with up to 25 remote controls, this DIY mini module is the ideal solution for home automation hobbyists and professionals alike. Made in Mainland China.

Key Features

• 433MHz RF Frequency — reliable wireless signal with up to 50m operating range (open space)
• Four Working Modes — Momentary, Toggle, Latching, and Time Delay (5s / 10s / 15s)
• Wide Compatibility — supports EV1527 / 1527 Learning Code encoding format
• 10A / 110W Maximum Load — suitable for garage doors, gates, LED strips, and more
• Stores Up to 25 Remotes — pair multiple transmitters to a single receiver
• Simple Code Learning — press the learning button to pair; press 8 times to clear all codes
• CE Certified — meets European Low Voltage Directive standards
• Compact Mini Design — easy to integrate into existing DIY projects

Working Modes Explained

Momentary: Hold the remote button → relay connects. Release the button → relay disconnects.

Toggle: Press once → relay connects. Press again → relay disconnects.

Latching: Press Button A → relay connects. Press Button B → relay disconnects.

Time Delay: Press the remote → relay connects. After releasing, the relay automatically disconnects after 5s, 10s, or 15s (selectable).

How to Learn / Pair a Remote

• Momentary Mode: Press the learning button once → LED off (learning state) → press remote button → LED flashes then goes off → LED on after 3s = success.
• Toggle Mode: Press the learning button twice → follow the same LED sequence as above.
• Latching Mode: Press the learning button three times → press Button A (LED flashes 5×) → press Button B (LED flashes 5×) → LED on after 3s = success.
• Time Delay — 5s: Press learning button 4 times. 10s: Press 5 times. 15s: Press 6 times → press remote → LED flashes off → LED on after 3s = success.
• Clear All Codes: Press the learning button 8 times to erase all stored remotes.

Note: The receiver can store up to 25 remote controls. Adding more than 25 will overwrite the earliest stored remote.

Receiver Specifications

• Input Voltage: DC 12V
• Working Current: 10A
• Maximum Load Power: 110W
• Frequency: 433MHz
• Encoding Format: EV1527

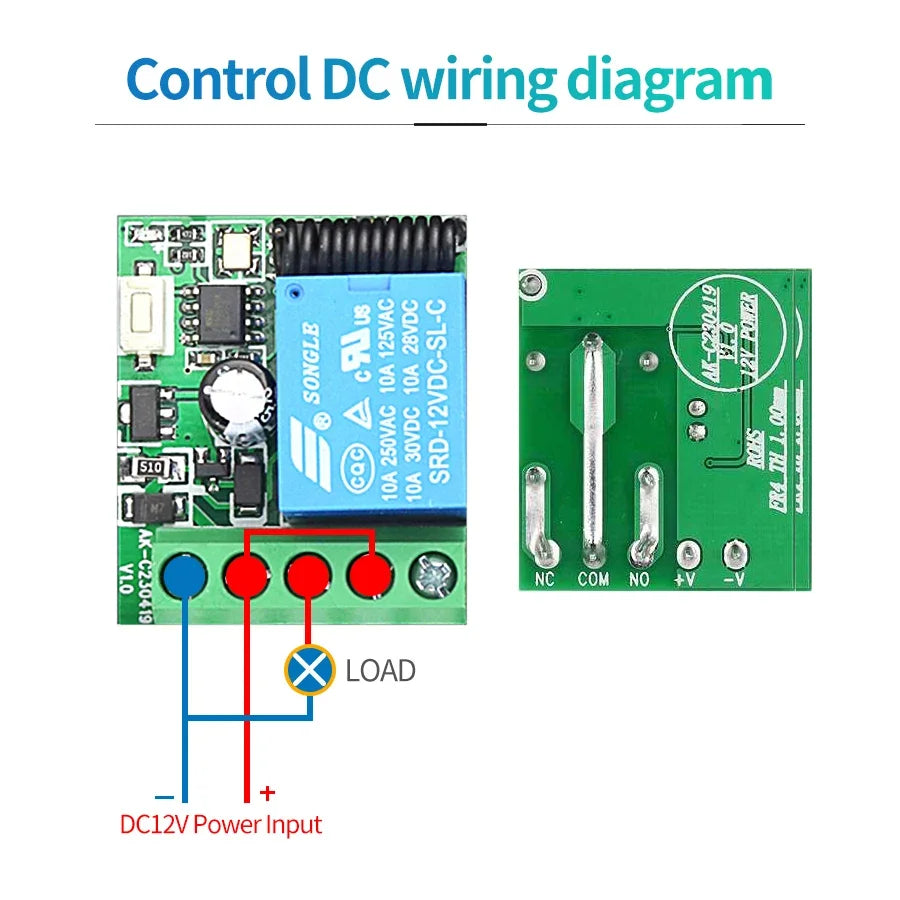

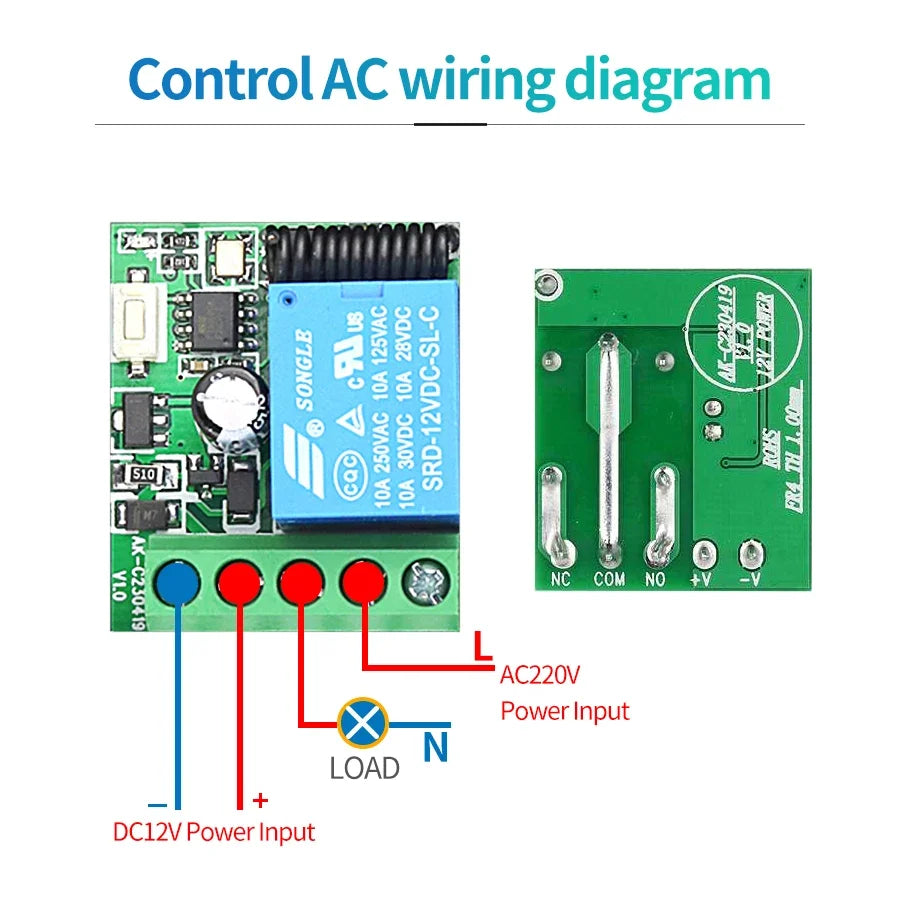

• Wiring: NC / COM / NO
• Working Modes: Momentary, Toggle, Latching, Time Delay (5s / 10s / 15s)

Remote Control Specifications

• Operating RF Frequency: 433MHz
• Coded System: 1527 Learning Code
• Working Voltage: DC 3V
• Working Current: <25mA
• Transmitting Power: 10mW
• Wireless Range: Up to 50m (open space)
• Transmission Rate: 50–60KHz
• Frequency Deviation: ±0.2MHz
• Color: Black

You May Also Like

• Stainless Steel Cord End Caps with Loop – Jewelry Findings
• Stainless Steel Flat Disc Spacer Beads Gold Silver – 20-50pcs

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What devices can this 433MHz relay receiver module control?

A: This universal RF 433MHz relay receiver module can control garage doors, electric gates, LED lighting strips, motors, and other DC 12V-powered devices with a maximum load of 10A / 110W. It's ideal for DIY home automation and smart switching projects.

Q: How many remote controls can be paired with the receiver?

A: The receiver can store up to 25 remote controls simultaneously. If you pair a 26th remote, the oldest stored remote code will be overwritten automatically. To remove all paired remotes, press the learning button 8 times to clear all stored codes.

Q: What is the difference between Momentary, Toggle, and Latching modes?

A: In Momentary mode, the relay is active only while you hold the remote button. In Toggle mode, one press turns the relay on and a second press turns it off. In Latching mode, you designate one button (A) to turn the relay on and another (B) to turn it off — useful for two-button remotes controlling separate circuits.

Q: What encoding format does this RF receiver support?

A: This module supports the EV1527 / 1527 Learning Code format, which is one of the most widely used RF encoding standards. It is compatible with most standard 433MHz transmitters and remote controls that use this coding system.
