DC 3V 3.7V 20RPM Mini N20 All-Metal Gear Motor for RC Robot
DC 3V 3.7V 20RPM Mini N20 All-Metal Gear Motor for RC Robot
Mini N20 DC Gear Motor – Compact, Precise & All-Metal
The Mini N20 Gear Motor is a compact, high-quality brushed DC motor featuring an all-metal gearbox designed for precision low-speed applications. Running at a smooth 20RPM no-load speed on DC 3V–3.7V (compatible range: 1.5V–5.0V), this little powerhouse is perfect for RC models, robotics, 3D printers, and DIY automation projects. Its right-angle 14T output gear shaft (2mm diameter) and permanent magnet construction deliver reliable, consistent torque in a tiny footprint.
Made in Mainland China.
Key Specifications
- Model: N20 Gear Motor
- Rated Voltage: DC 3.7V
- Suitable Voltage Range: DC 1.5V – 5.0V
- No-Load Speed: 20 RPM
- No-Load Current: 40mA

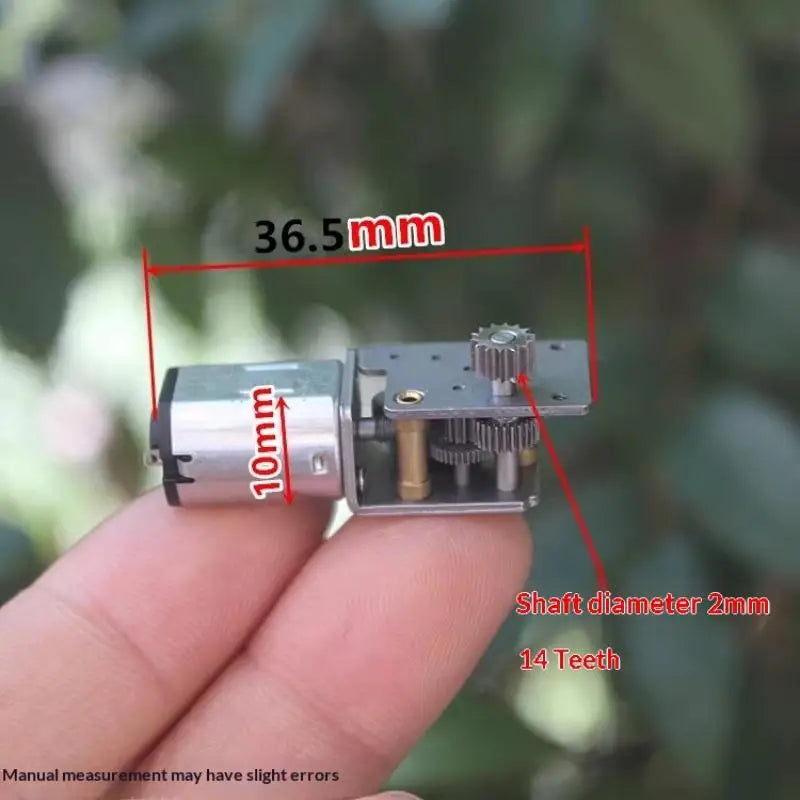

- Output Shaft Diameter: 2mm (14T Gear)
- Commutation: Brush
- Construction: Permanent Magnet
- Gearbox Material: All Metal
- Protect Feature: Waterproof
- Output Power: <18.65W
- Certification: CE
- Package Includes: 1 × N20 Gear Motor
Why Choose the N20 Gear Motor?
- 🔩 All-Metal Gearbox – Durable construction for extended operational life under continuous load
- ⚙️ Right-Angle 14T Output Gear – Ideal for space-constrained builds where in-line motor placement isn't feasible
- 🔋 Wide Voltage Compatibility – Works with standard AA battery packs, LiPo cells, and USB power banks (1.5V–5.0V)
- 💧 Waterproof Design – Suitable for environments where moisture exposure is a concern
- 📐 Ultra-Compact Form Factor – The N20 standard size fits neatly into tight chassis and enclosures
- 🤖 Versatile Applications – RC cars, robotic arms, automated gadgets, 3D printer extruders, and more
Perfect For
- RC models and remote-control vehicles
- DIY robotics and automation projects
- 3D printer components
- Smart home actuators and small-scale machinery
- Educational STEM builds and maker projects
You May Also Like
- 10pcs Metal Q Ring Spring Clasps Gold Silver Plated Jewelry
- Stainless Steel Cord End Caps with Loop – 6pcs Jewelry Findings
- Stainless Steel Flat Disc Spacer Beads Gold Silver – 20-50pcs
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltage range is compatible with the Mini N20 Gear Motor?
A: The N20 Gear Motor is rated at DC 3.7V but supports a broad operating range of DC 1.5V to 5.0V. This makes it compatible with single AA/AAA battery packs, 3V coin cells, 3.7V LiPo batteries, and standard 5V USB power supplies.
Q: What is the output shaft size and gear type on this motor?
A: The output shaft has a diameter of 2mm and uses a 14-tooth (14T) right-angle gear configuration, making it suitable for compact drivetrain layouts in robots, RC models, and 3D printer mechanisms.
Q: Is the N20 Gear Motor suitable for outdoor or wet environments?
A: Yes, this motor features a waterproof design, offering protection against moisture and light splashing — ideal for outdoor RC models or projects where humidity may be a factor.
Q: How many motors are included in one order?
A: Each order includes 1 × N20 Gear Motor. If you need multiple units for a multi-wheel robot or larger project, simply increase the quantity at checkout.
