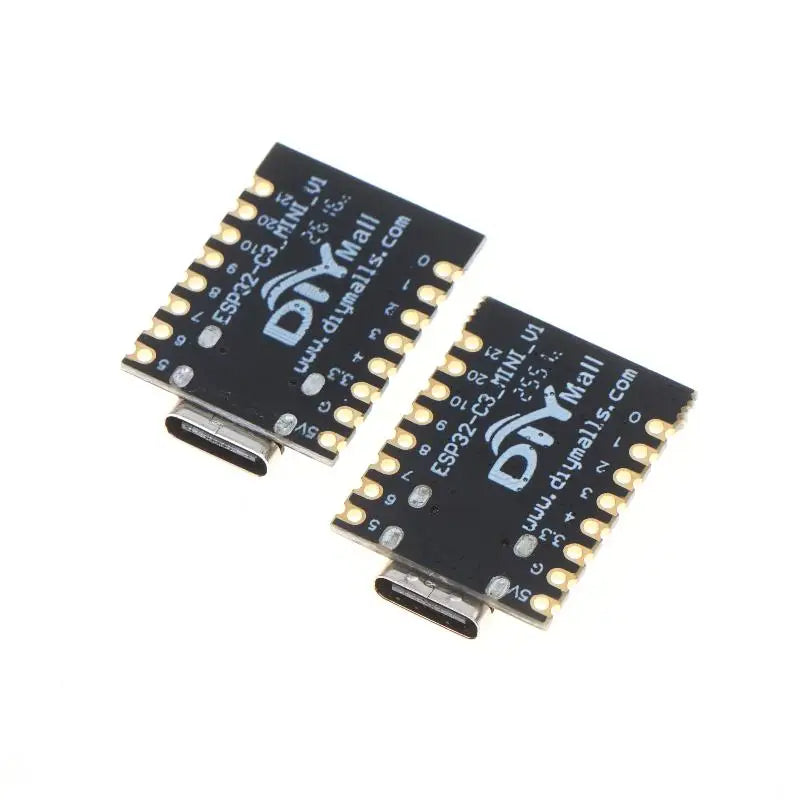

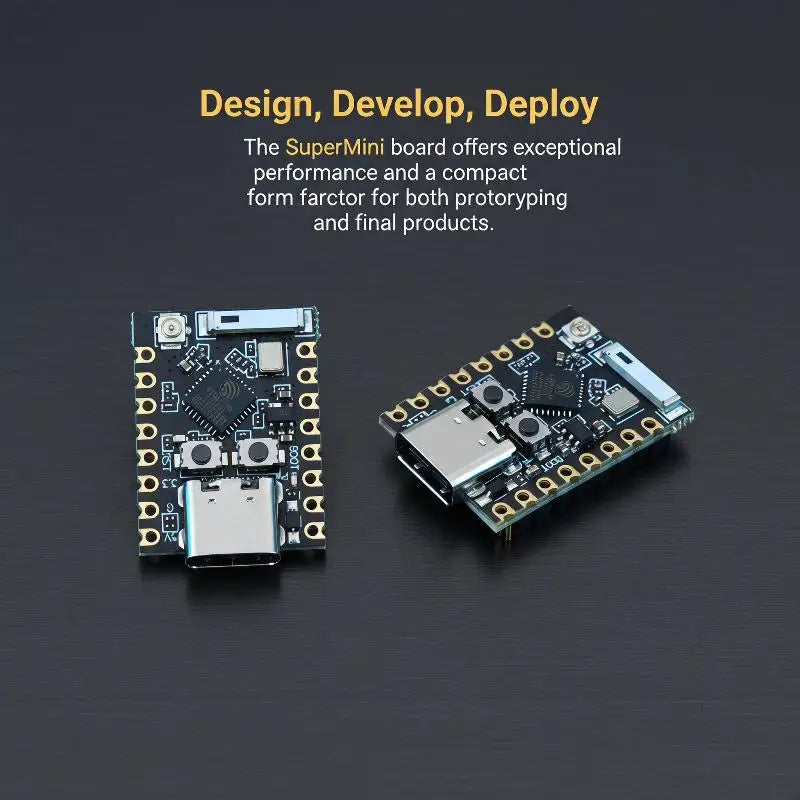

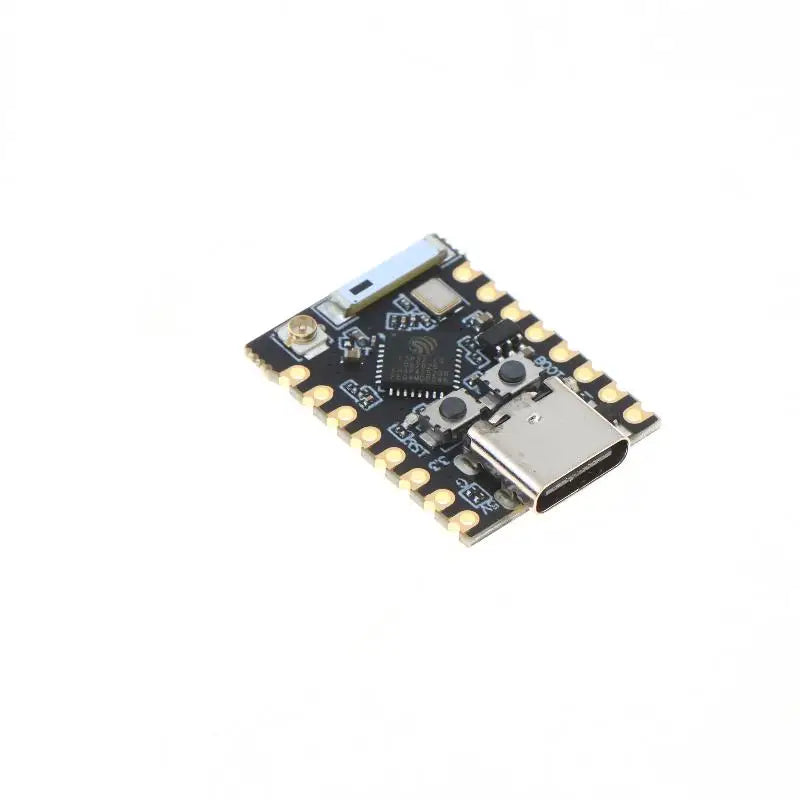

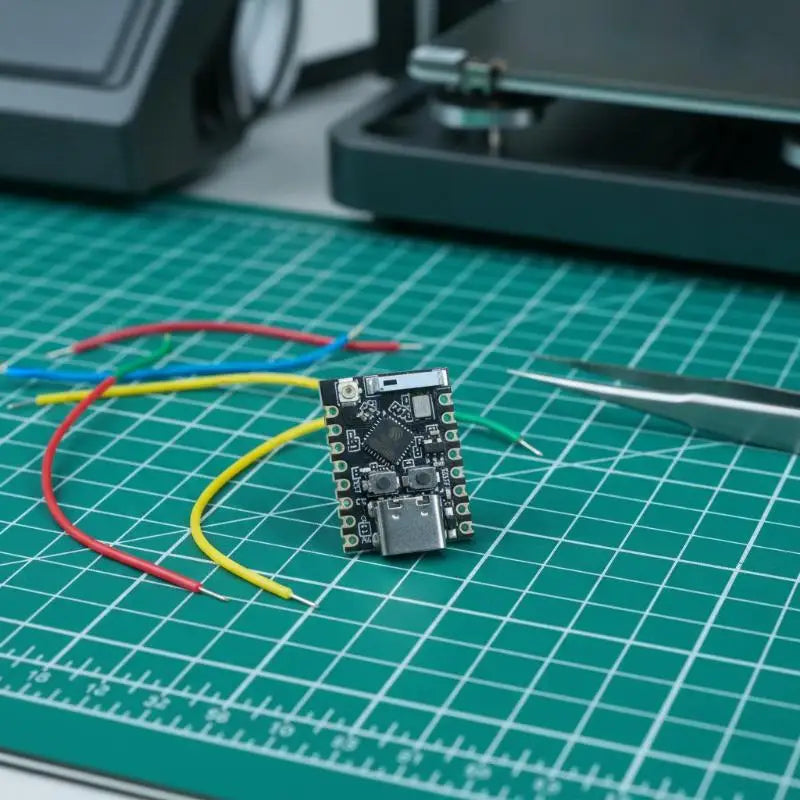

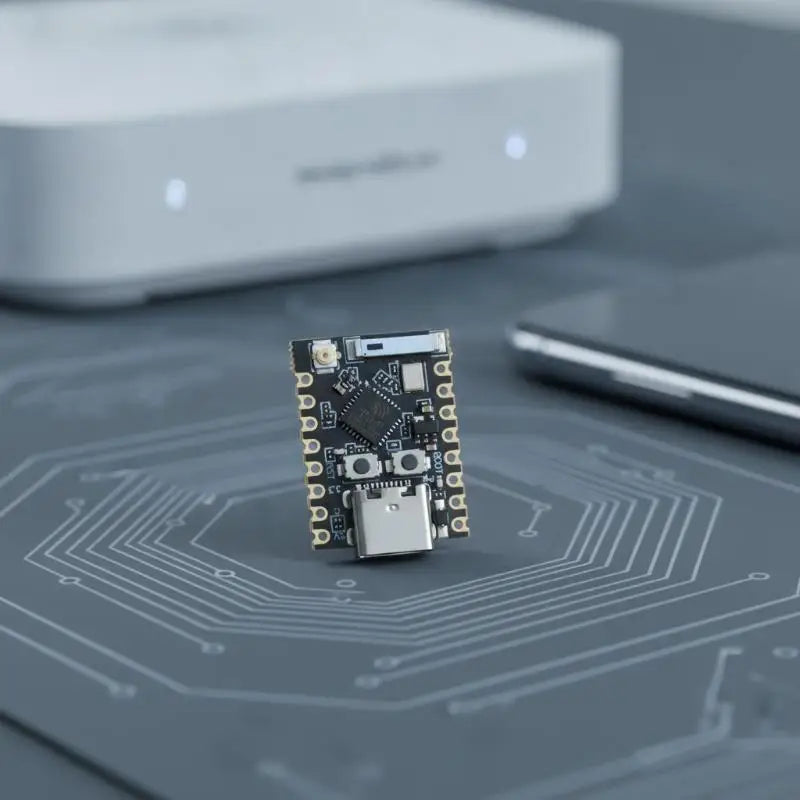

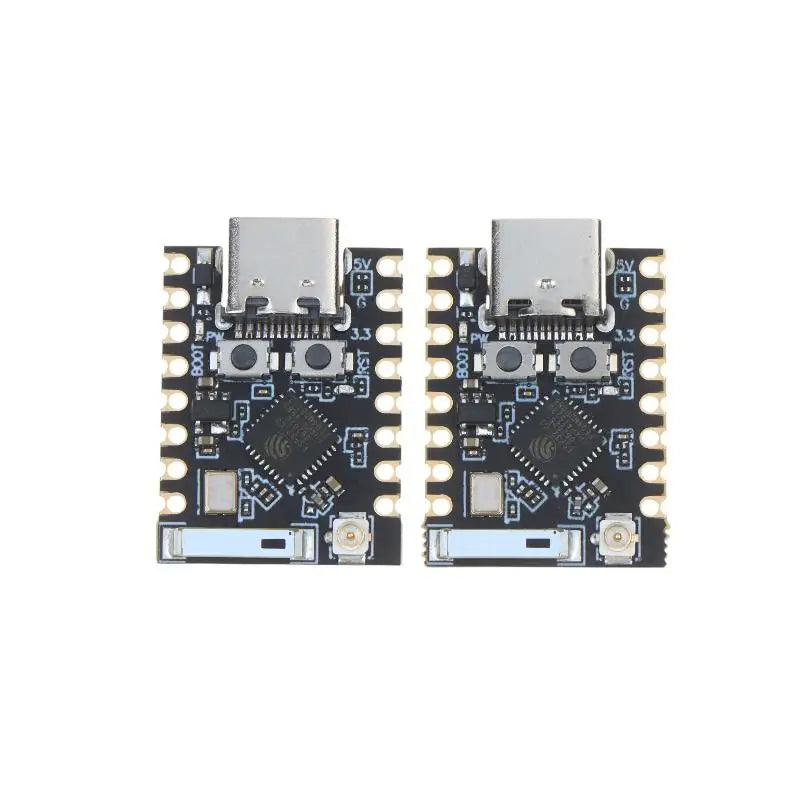

ESP32-C3 SuperMini Development Board – Ultra-Compact WiFi & BLE 5.0

Take your IoT and embedded projects to the next level with the ESP32-C3 SuperMini Development Board. Measuring just 23.83 × 17.65mm, this ultra-compact board packs serious processing power and dual wireless connectivity into a breadboard-friendly footprint — ideal for makers, hobbyists, and professional engineers alike.

Key Features

• Powerful RISC-V Core: Espressif ESP32-C3 32-bit RISC-V single-core processor running at 160MHz with 400KB RAM and 4MB Flash — handles complex IoT firmware with ease and no performance bottlenecks.

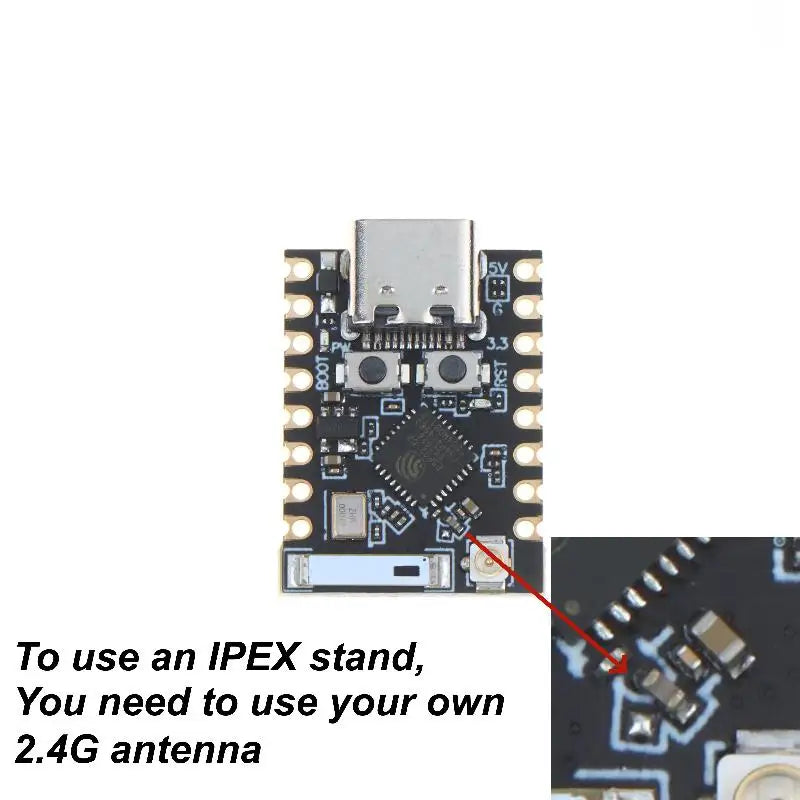

• Dual Wireless Connectivity: Integrated 2.4GHz 802.11b/g/n WiFi and Bluetooth 5.0 Low Energy (BLE) eliminate the need for additional wireless modules, reducing project cost and development time.
• Ultra-Compact PCB: High-density, heat-resistant FR-4 fiberglass construction at only 23.83 × 17.65mm — fits into space-constrained builds including wearables, smart sensors, and mini IoT devices.
• Type-C USB Interface: Convenient Type-C port for power delivery and programming, paired with gold-plated pin headers at standard 0.1" (2.54mm) spacing for full breadboard compatibility.
• Ultra-Low Power Consumption: Advanced power management supports multiple low-power modes with only 43μA drawn in deep sleep — greatly extends battery life for portable, battery-powered applications.

Specifications

Perfect For

• DIY IoT prototyping and home automation
• Wearable electronics and compact smart sensors
• Battery-powered wireless data loggers
• Arduino-compatible and MicroPython projects
• Beginner and advanced embedded development

Explore More DIY Components

Looking for more components for your projects? Check out our Metal Q Ring Spring Clasps – Gold & Silver Plated for hardware accessories, or browse our Stainless Steel Cord End Caps with Loop for precision metal fittings. For those who enjoy hands-on builds, our Stainless Steel Flat Disc Spacer Beads are great for custom assemblies.

Learn more: ENERGY STAR product efficiency guidance

Frequently Asked Questions

Q: Is the ESP32-C3 SuperMini compatible with the Arduino IDE?

A: Yes! The ESP32-C3 SuperMini development board is fully compatible with the Arduino IDE. Simply install the Espressif ESP32 board package via the Arduino Board Manager, select the ESP32-C3 board, connect via the Type-C USB port, and you're ready to upload sketches.

Q: What wireless protocols does this development board support?

A: The board features integrated 2.4GHz 802.11b/g/n WiFi and Bluetooth 5.0 Low Energy (BLE). Both wireless protocols are built directly into the ESP32-C3 chip, so no additional wireless modules or shields are needed for your IoT projects.

Q: Can this board run on battery power efficiently?

A: Absolutely. The ESP32-C3 SuperMini's built-in power management circuit supports multiple low-power operation modes. In deep sleep mode, it consumes as little as 43μA, making it an excellent choice for battery-powered IoT devices, wireless sensors, and portable electronics where maximizing battery life is critical.

Q: Will this board fit on a standard breadboard?

A: Yes. The board is equipped with pre-soldered gold-plated pin headers at the industry-standard 0.1" (2.54mm) pitch, making it fully compatible with any standard breadboard for fast and easy prototyping without any soldering required.
