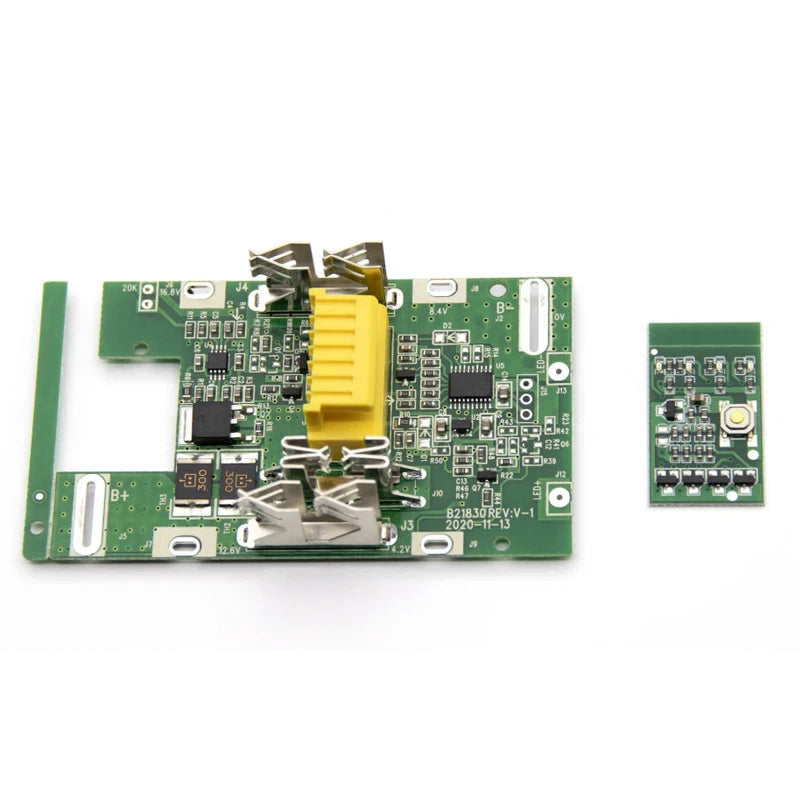

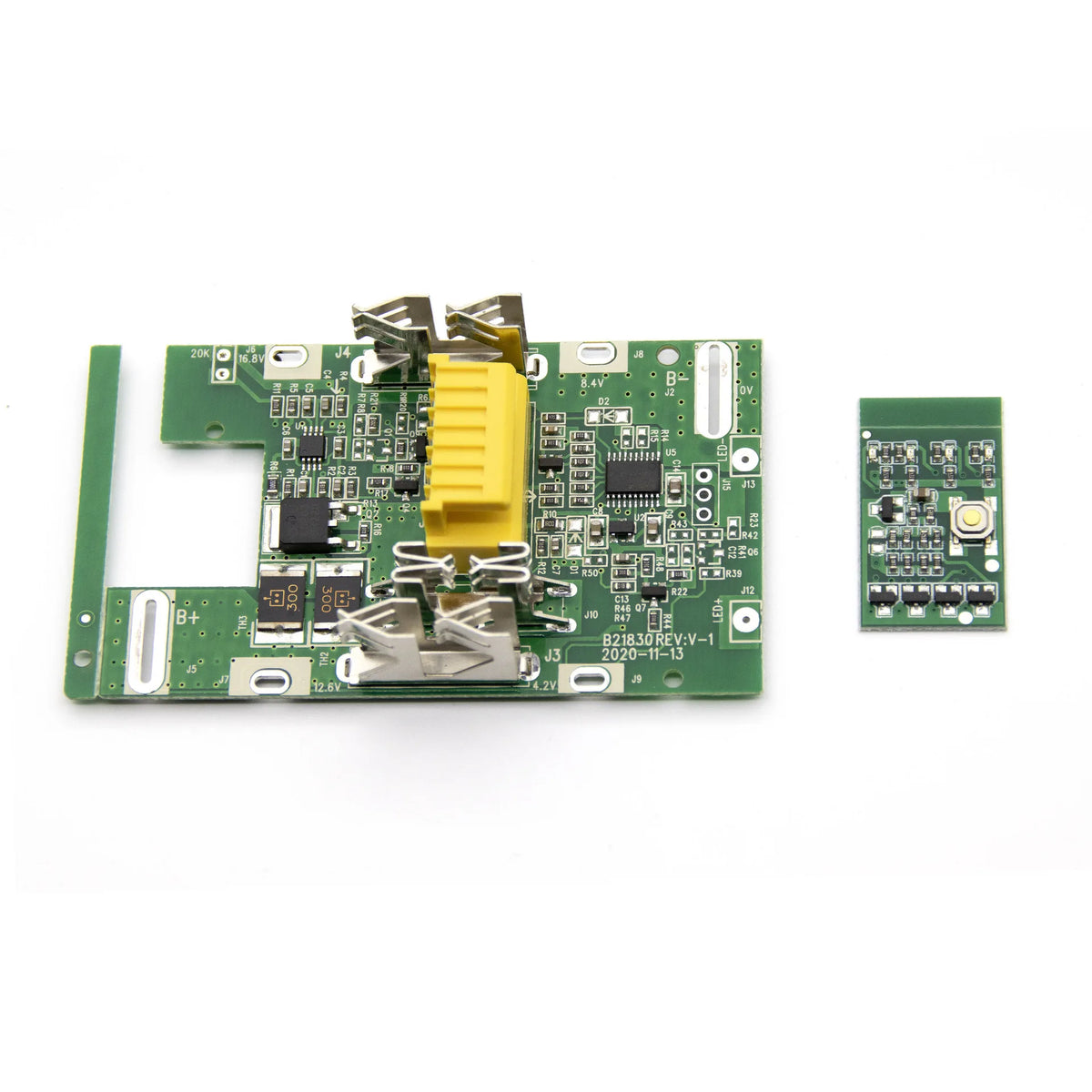

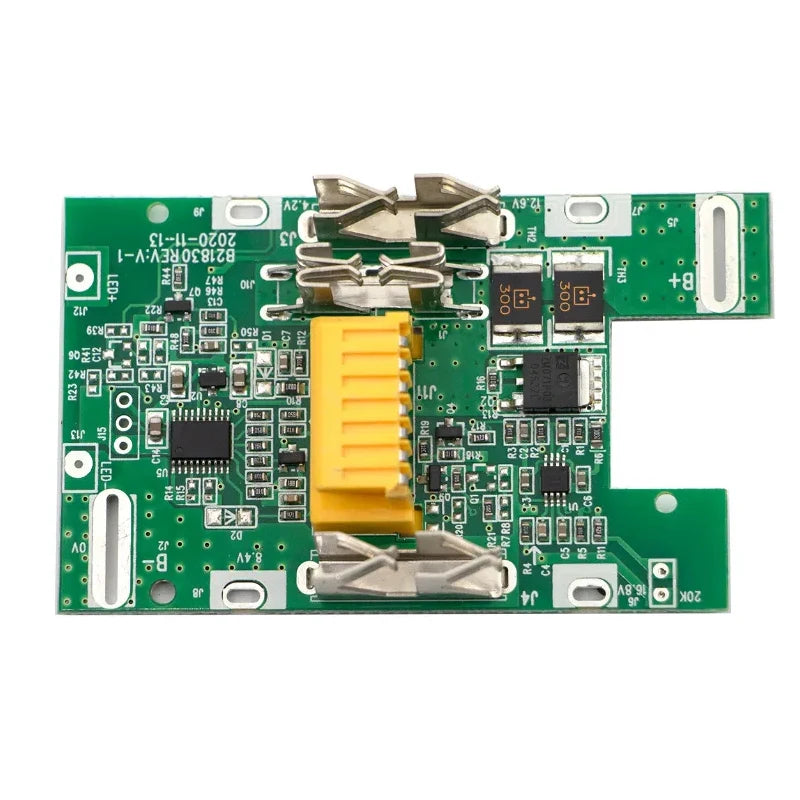

Makita 18V Li-Ion Battery BMS PCB Charging Protection Board
Upgrade or rebuild your Makita 18V battery packs with this high-performance Battery Management System (BMS) PCB Charging Protection Board. Engineered to be fully compatible with Makita BL1815, BL1830, BL1850, BL1860, and LXT400 battery housings, this board delivers comprehensive cell-level protection and real-time battery status indication via LED — keeping your power tools running at peak performance.
Made in Mainland China.
Key Features
- Dual IC Cell Monitoring: Built-in dual IC independently detects and monitors each individual cell voltage, and tracks usage cycles for smarter battery management.
- Multi-Layer Protection: Provides overvoltage, undervoltage, overheat, overcurrent, overcharge, and short-circuit protection on every cell — extending battery life and safeguarding your tools.
- Low Voltage Shutdown: Compatible with the full new Makita 18V series; automatically triggers low-voltage shutdown to prevent deep discharge damage.
- Anti-Vibration Design: Stable, rugged construction ideal for use with Makita torque wrenches, impact drills, angle grinders, and other demanding power tools.

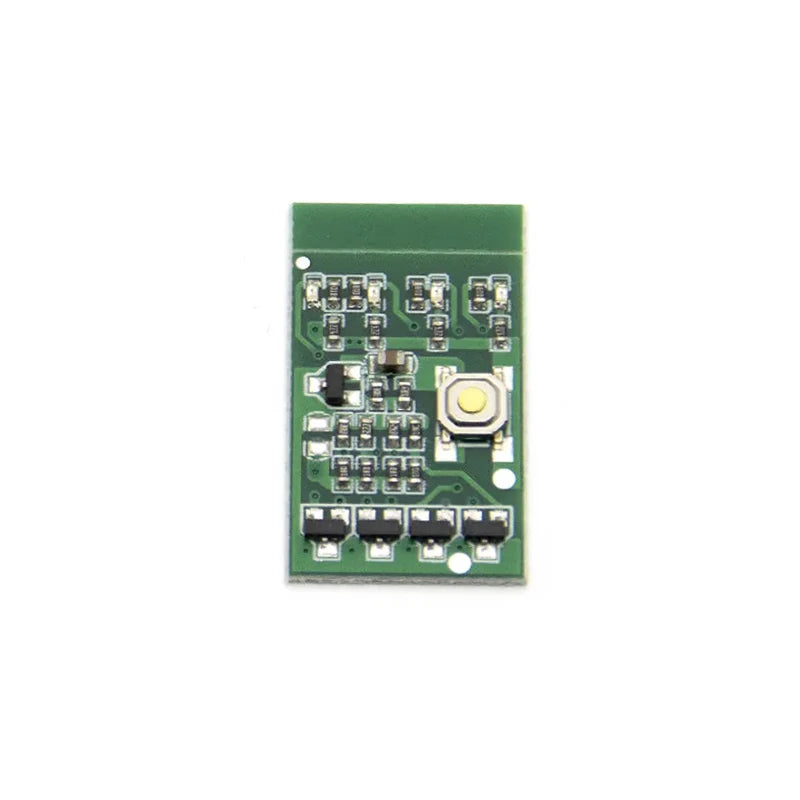

- Battery Status LED: Integrated LED indicator for quick, at-a-glance charge status monitoring.
- PCB Color: Available in Blue, Green, Red, or other colors — color is shipped based on current stock availability. If you have a specific color preference, please do not order, as we cannot guarantee a specific color.
PCB Technical Specifications
- High Rate Discharge: 15A
- Maximum Discharge Current: Continuous 60A, Pulse 195A
- Discharge Termination Voltage: 13.75V
- Overcharge Protection Voltage: Single cell 4.25V ± 0.025V
- Overcharge Recovery Voltage: 4.1V ± 0.025V
- Over-Discharge Protection Voltage: Single cell 2.7V ± 0.08V
- Over-Discharge Recovery Voltage: Single cell 3.0V ± 0.08V
- Charge High-Temperature Protection: > 60°C ± 2°C
- Overcurrent Protection 1: ≥ 100A / 1s delay
- Overcurrent Protection 2: ≥ 180A / 100ms delay
- Short Circuit Protection: ≥ 200A
Compatibility
- Makita BL1815
- Makita BL1830
- Makita BL1850
- Makita BL1860
- Makita LXT400
What's in the Box
- 1 × Makita 18V BMS PCB Charging Protection Board
Looking for more DIY and tools accessories? Check out our Stainless Steel Cord End Caps with Loop and Metal Q Ring Spring Clasps for your other projects.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: Which Makita 18V battery models is this BMS PCB protection board compatible with?
A: This BMS PCB Charging Protection Board is compatible with Makita 18V Li-ion battery models including BL1815, BL1830, BL1850, BL1860, and LXT400 series battery housings. It is designed to work seamlessly with the full range of new Makita 18V power tool batteries.
Q: Can I choose the PCB board color when ordering?
A: The PCB board is available in various colors including Blue, Green, and Red; however, the specific color shipped depends on current stock availability. If you have a strong preference for a particular PCB color, we recommend not placing an order, as we are unable to guarantee a specific color will be sent.
Q: What types of protection does this BMS board provide for my Makita battery?
A: This BMS board provides comprehensive multi-layer protection including overvoltage protection, undervoltage (over-discharge) protection, overcharge protection, overcurrent protection, overheat protection, and short-circuit protection — all monitored at the individual cell level using dual IC technology for maximum reliability and battery longevity.
