Smart PIR Motion Sensor E27 Lamp Base Holder with Auto Light Control
Upgrade any standard E27 bulb socket into a fully automatic, motion-activated lighting system. This intelligent PIR (Passive Infrared) induction bulb socket adapter detects human movement within its wide sensing range and instantly switches your light on — then automatically turns it off once the area is clear. Perfect for hands-free, energy-saving illumination wherever you need it.
Where Can You Use It?
- Stairways & hallways
- Fire escape and emergency passages
- Public walkways & corridors
- Garages, storage rooms & utility areas
- Security & deterrent lighting setups
- Any indoor location requiring hands-free automatic lighting
Key Features

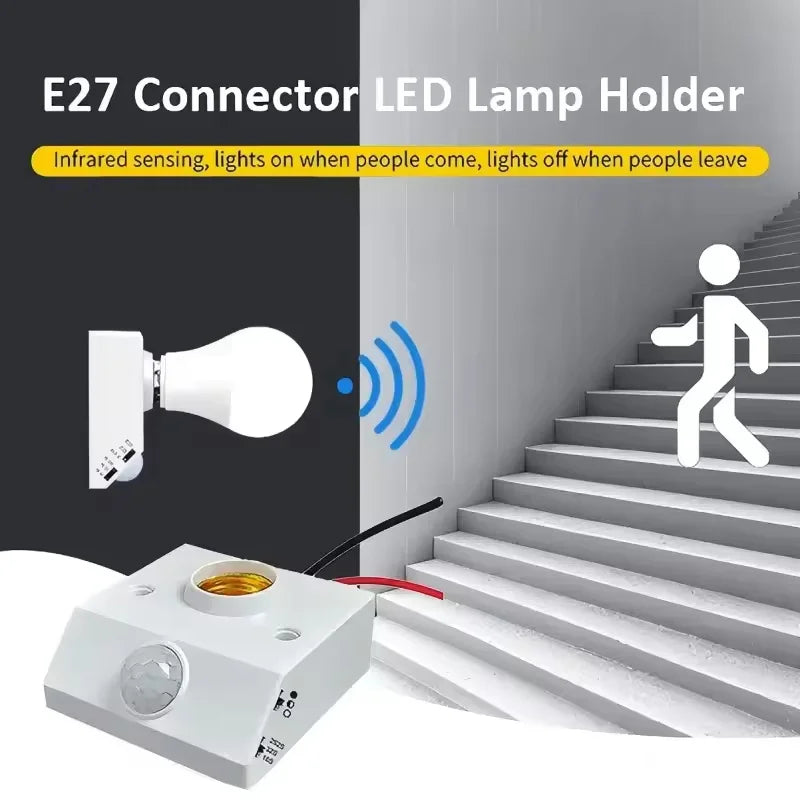

- High-Sensitivity PIR Detection: Detects changes in the infrared spectrum generated by human movement. The light stays on while motion is present and automatically switches off once the area is clear — truly automatic "lights on when you arrive, lights off when you leave" convenience.

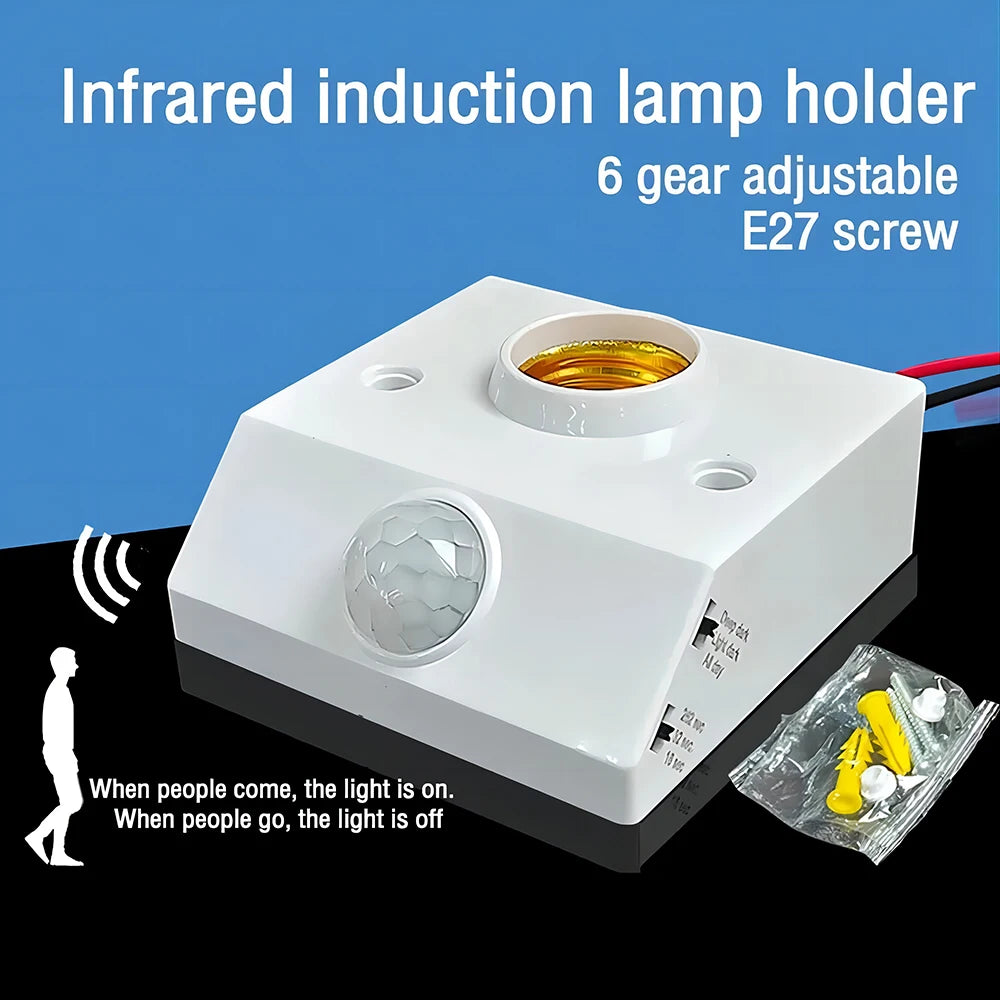

- Adjustable Delay Time: Choose from three preset delay segments — 17, 35, or 280 seconds — or fine-tune the delay continuously within the available range to suit your exact needs.
- Dual Control Modes: Factory set to activate only in low-light conditions (≤6 Lux), saving energy during daylight hours. Can also be switched to all-day sensing mode for round-the-clock operation.
- Wide Sensing Angle & Range: 138° cone detection angle with a sensing distance of up to 6 metres (±2 m) for broad, reliable coverage.
- Universal Voltage Compatibility: Works with AC 90–250V / 50–60Hz — suitable for use in both 110V and 240V electrical systems worldwide.
- Broad Bulb Compatibility: Supports LED, energy-saving, and incandescent bulbs up to 100W.
- Overload Protection: Built-in overload protection circuit for added safety during continuous use.
- Ultra-Low Standby Power: Static power consumption of just ≤0.012W — virtually zero energy wasted when idle.
- CE Certified for safety and electromagnetic compliance.
Technical Specifications
| Working Voltage | AC 90–250V (50/60Hz) |
| Load Power | 1W – 100W |
| Sensing Angle | 138° cone angle |
| Sensing Distance | 6 m ± 2 m |
| Delay Settings | 17 s / 35 s / 280 s (adjustable); factory default: 40 s ± 8 s |
| Light Threshold | 6 Lux ± 1 Lux (or all-day sensing) |
| Static Power Consumption | ≤ 0.012W |
| Operating Temperature | -20°C to +45°C |
| Socket Base | E27 |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Installation & Safety Notes
- Always follow the wiring diagram printed on the back of the unit. Never exceed the rated load.
- Installation should be performed by a qualified electrician in accordance with local wiring regulations.
- Maintain a minimum distance of 0.5 m between the sensor socket and the bulb.
- Always switch off power before installing or wiring the device; energise only after installation is complete.
- If the bulb does not respond, verify the circuit connections and bulb condition first, then check the internal fuse of the socket.
Explore More From Our Store
Looking for other smart home accessories or handy tools? Check out these popular picks:
- Stainless Steel Cord End Caps with Loop – 6pcs Jewelry Findings
- Stainless Steel Flat Disc Spacer Beads Gold Silver – 20-50pcs
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What types of bulbs are compatible with this PIR motion sensor E27 socket adapter?

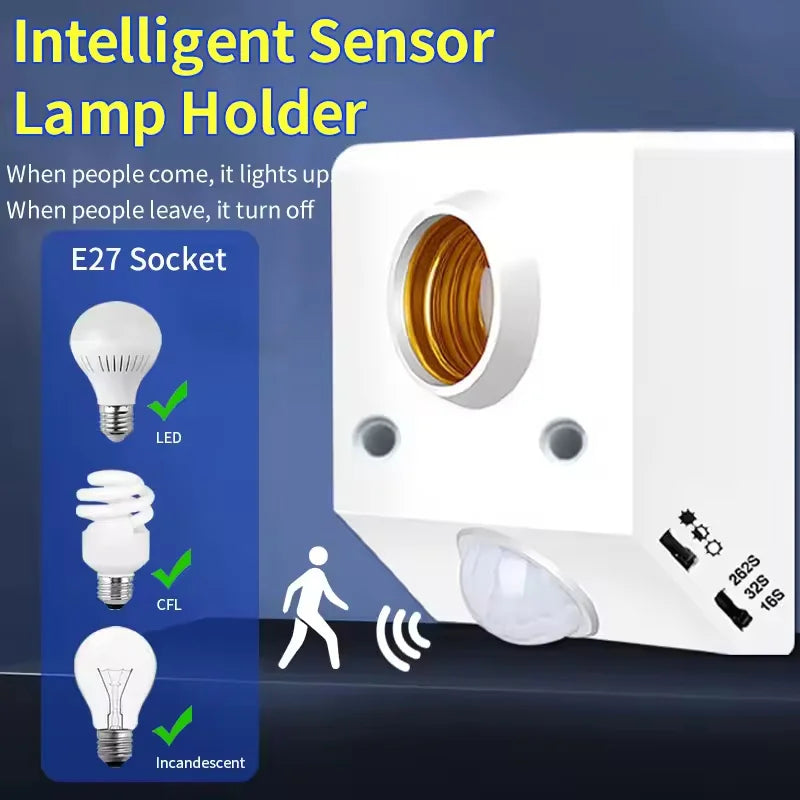

A: This E27 sensor socket adapter is compatible with LED bulbs, energy-saving compact fluorescent lamps (CFL), and traditional incandescent bulbs, supporting a load range of 1W up to 100W. Simply screw it into any standard E27 lamp fixture and insert your preferred bulb.
Q: Can I adjust how long the light stays on after motion is detected?
A: Yes! The delay time is fully adjustable. You can select from three colour-coded toggle positions: 17 seconds, 35 seconds, or 280 seconds. Additionally, within each delay range, the time can be fine-tuned continuously to your preferred duration. The factory default is approximately 40 seconds (±8 s).
Q: Will the motion sensor activate the light during the daytime?
A: By default, the sensor is factory-set to activate only when ambient light levels fall to 6 Lux or below — meaning it typically won't turn the light on in well-lit conditions, helping you save energy. If you prefer the sensor to respond to motion at any time of day, it can be switched to all-day sensing mode.
Q: Is this sensor socket compatible with both 110V and 240V electrical systems?
A: Yes. The adapter operates across a wide voltage range of AC 90–250V at 50/60Hz, making it suitable for electrical systems worldwide, including standard US 110V and European/Australian 220–240V systems.
