GGBEE PIR Motion Sensor Switch – Automatic Lighting Control
Upgrade your home or workspace lighting with the GGBEE Time Delay PIR Motion Sensor Switch. This compact, plug-and-play infrared switch automatically turns lights on when movement is detected and off again after a set delay — saving energy and adding hands-free convenience to corridors, bathrooms, garages, closets, basements, and more. CE certified and compatible with a wide range of lamp types and voltages from AC 85V to 265V.
Key Features

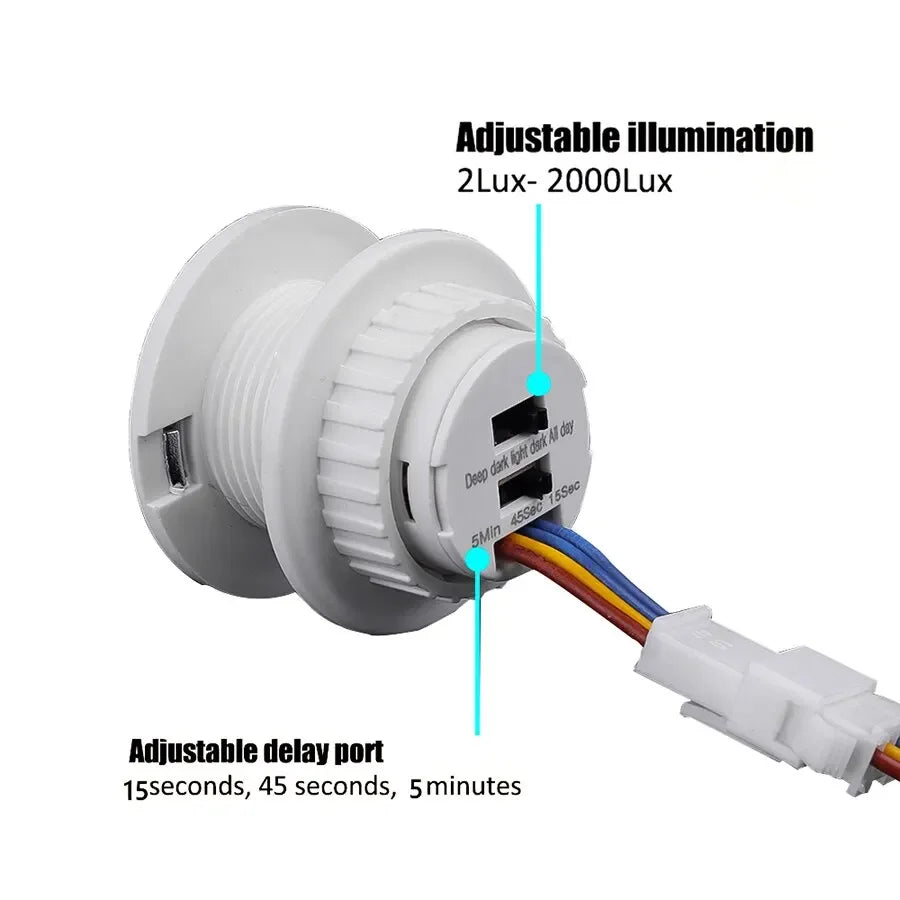

- 3 Lighting Mode Settings: Choose from Deep Dark, Light Dark, or All Day — so the sensor activates only when you need it (low-light environments, medium-light, or around the clock).

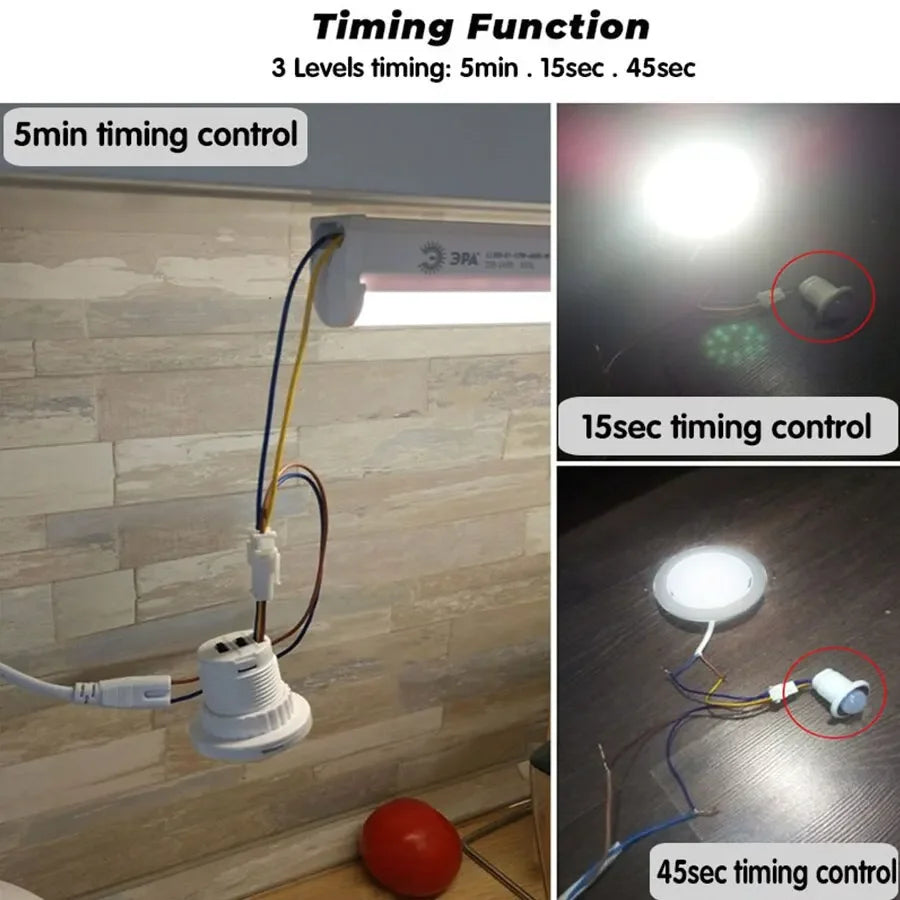

- 3 Adjustable Time Delays: Set auto-off delay to 15 seconds, 45 seconds, or 5 minutes to suit your space and usage habits.

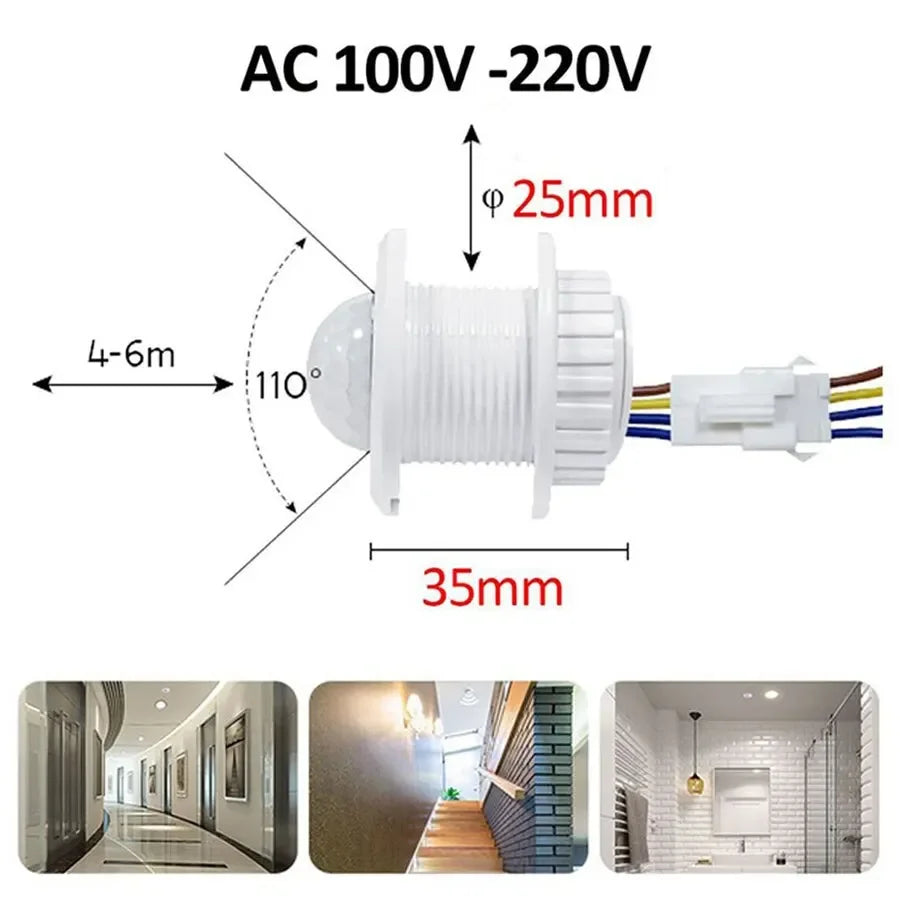

- Wide Sensing Angle & Range: 110° angle coverage with a sensing distance of 3–6 metres for reliable detection.
- Universal Voltage Support: Works with AC 85–265V, 50/60Hz — compatible with most global electrical systems.
- Broad Lamp Compatibility: Suitable for LED lamps, LED downlights, ceiling lights, energy-saving lamps, and fluorescent lamps (up to 40W output).
- Ultra-Low Standby Consumption: Standby power draw is less than 0.1W, keeping your energy use minimal.

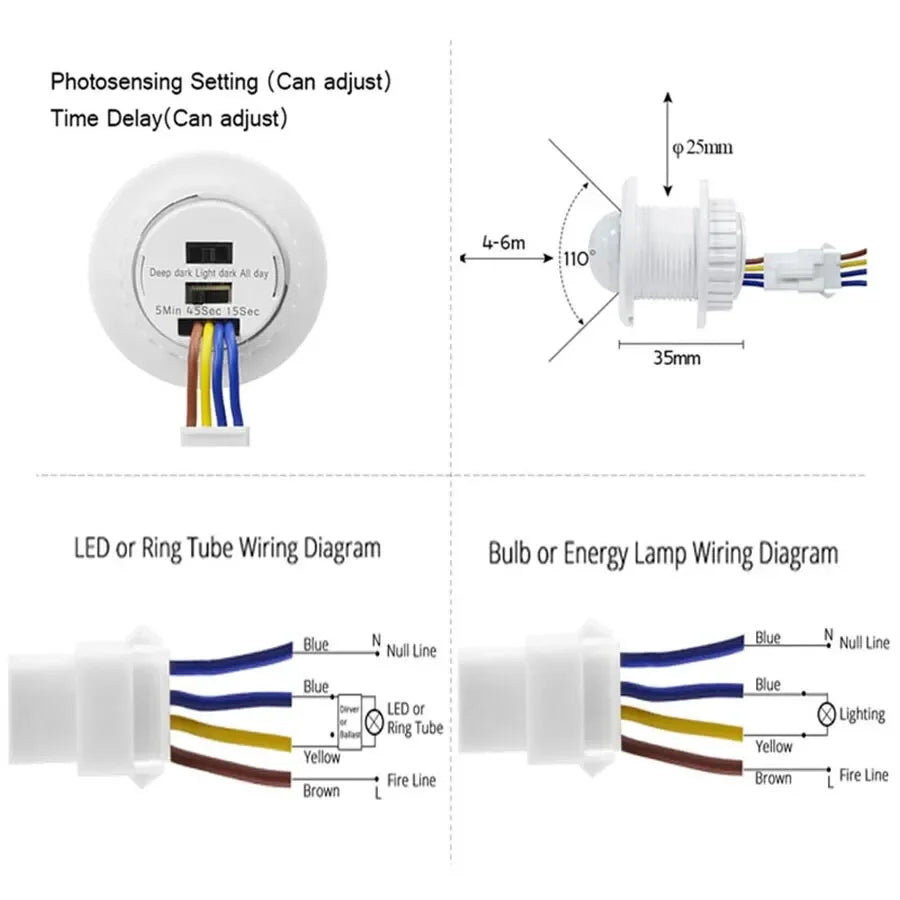

- Compact & Easy to Install: Small, lightweight plastic housing (hole diameter: 25–26 mm). Simple wiring with clear installation diagrams included.
- Wide Temperature Range: Operates reliably from -10°C to +45°C.
- CE Certified for safety and quality assurance.
Specifications
| Color | White |
| Material | Plastic |
| Working Voltage | AC 85–265V, 50/60Hz |
| Max Output Power | ≤ 40W |
| Sensing Distance | 3–6 m |
| Angle Coverage | 110° |
| Time Delay Options | 15 sec / 45 sec / 5 min |
| Mode Settings | Deep Dark / Light Dark / All Day |
| Standby Consumption | < 0.1W |
| Operating Temperature | -10°C to +45°C |
| Installation Hole Diameter | 25–26 mm |
| Certification | CE |
| Country of Origin | Made in Mainland China |
Ideal For
- Hallways & corridors
- Bathrooms & laundry rooms
- Garages & basements
- Warehouses & storage areas
- Closets & pantries
- Advertisement light boxes
- Ventilation fan auto-control
What's in the Box

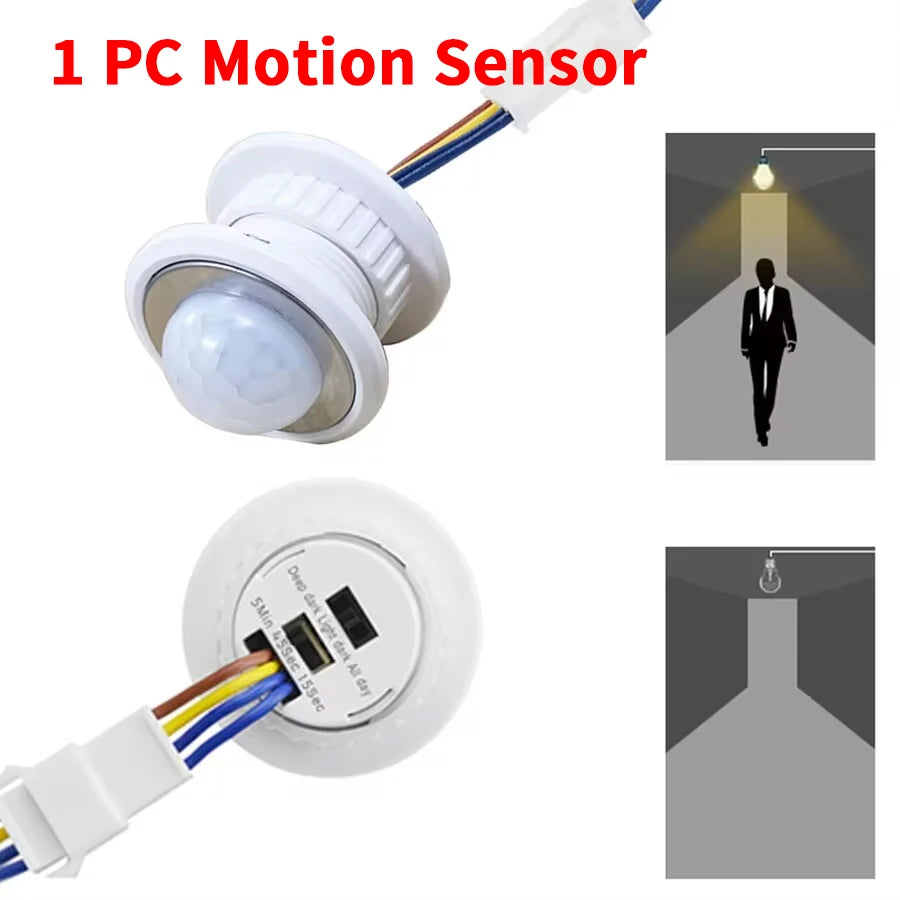

- 1 × PIR Motion Sensor Switch
Looking for more DIY and home essentials? Check out our Stainless Steel Cord End Caps with Loop or browse our 5 Yards Aluminum O-Shape Twist Chain for your next creative project.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What types of lights are compatible with this PIR motion sensor switch?
A: The GGBEE PIR motion sensor switch is compatible with LED lamps, LED downlights, ceiling lights, energy-saving lamps, and fluorescent lamps with a maximum output of 40W. It supports a broad voltage range of AC 85–265V, making it suitable for most global electrical systems.
Q: Can I adjust the time delay and sensitivity on this motion sensor switch?
A: Yes! The switch offers three adjustable time delay settings — 15 seconds, 45 seconds, and 5 minutes — so you can customise how long the light stays on after motion is no longer detected. It also features three lighting mode settings (Deep Dark, Light Dark, and All Day) to control when the sensor is active based on ambient brightness.
Q: How difficult is it to install the PIR motion sensor switch?

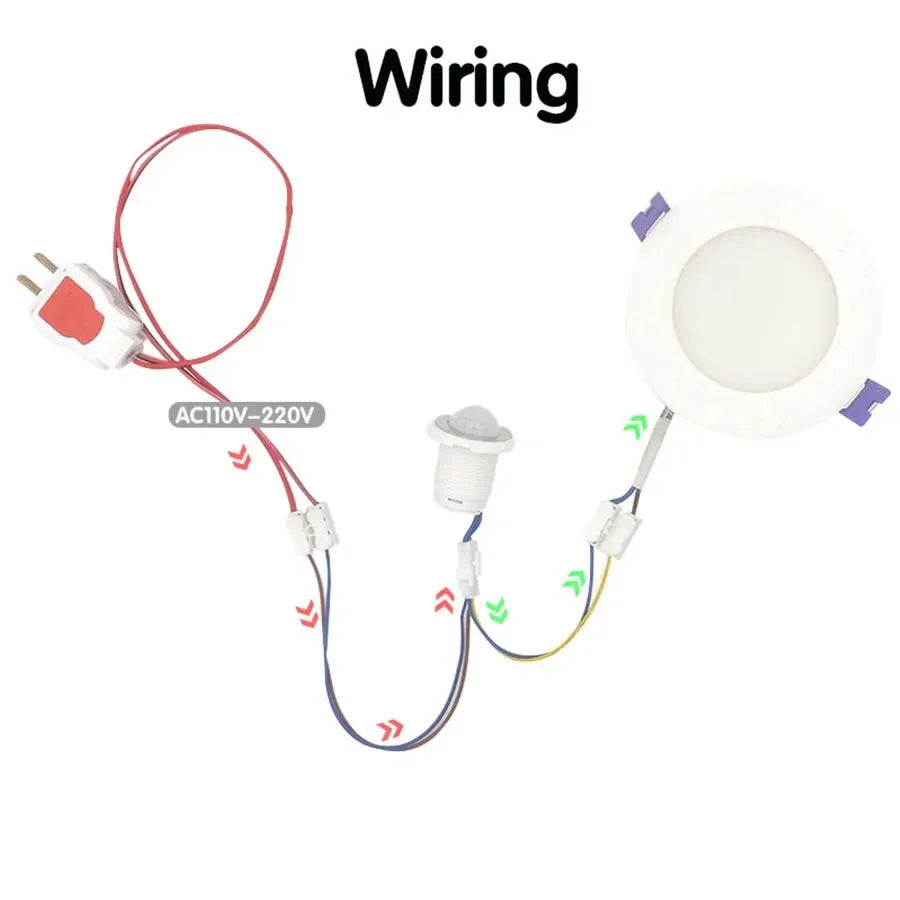

A: Installation is straightforward. The switch requires a mounting hole of 25–26 mm in diameter and comes with wiring diagram guidance. Its compact, lightweight design makes it easy to fit into standard switch positions. Always ensure power is switched off before installation and follow local electrical safety guidelines.
Q: What is the sensing range and detection angle of this switch?
A: The sensor detects movement within a distance of 3 to 6 metres and covers a wide 110° detection angle, providing reliable coverage for most rooms and passageways.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
