USB 18650 Lithium Battery Charger & Adjustable Step-Up Boost Module

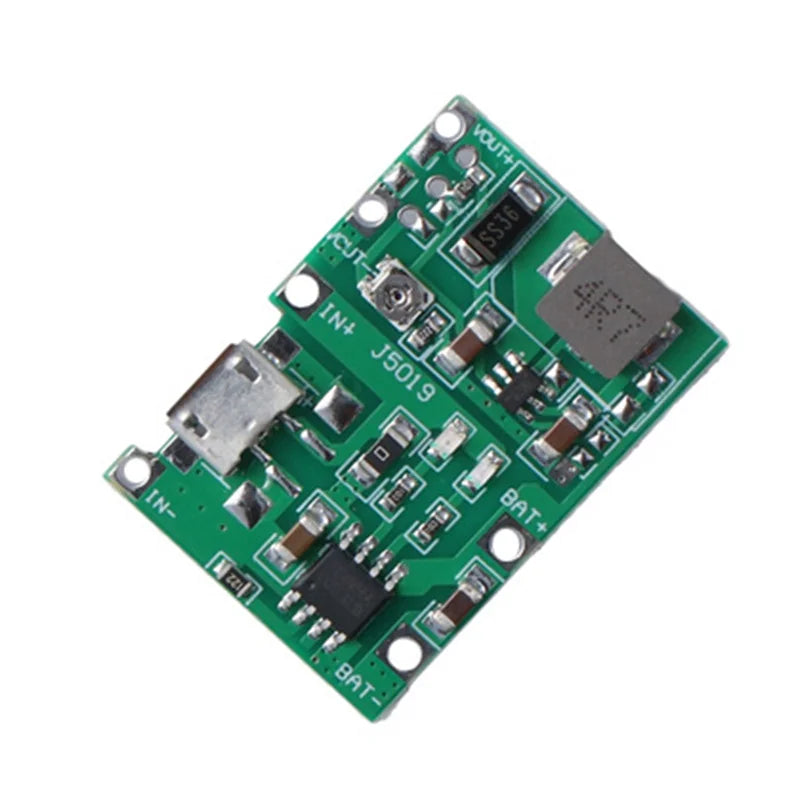

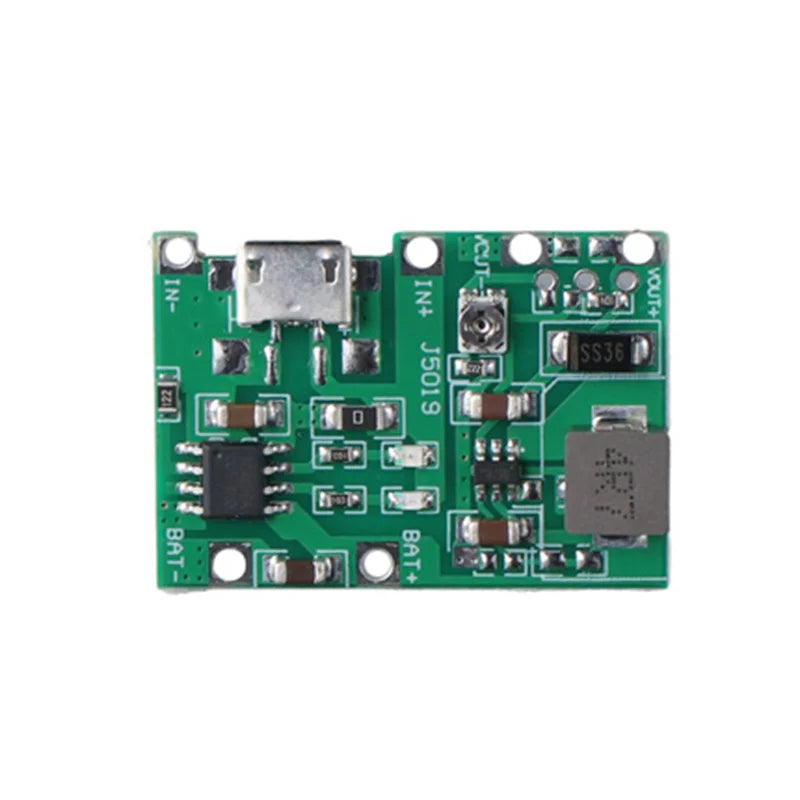

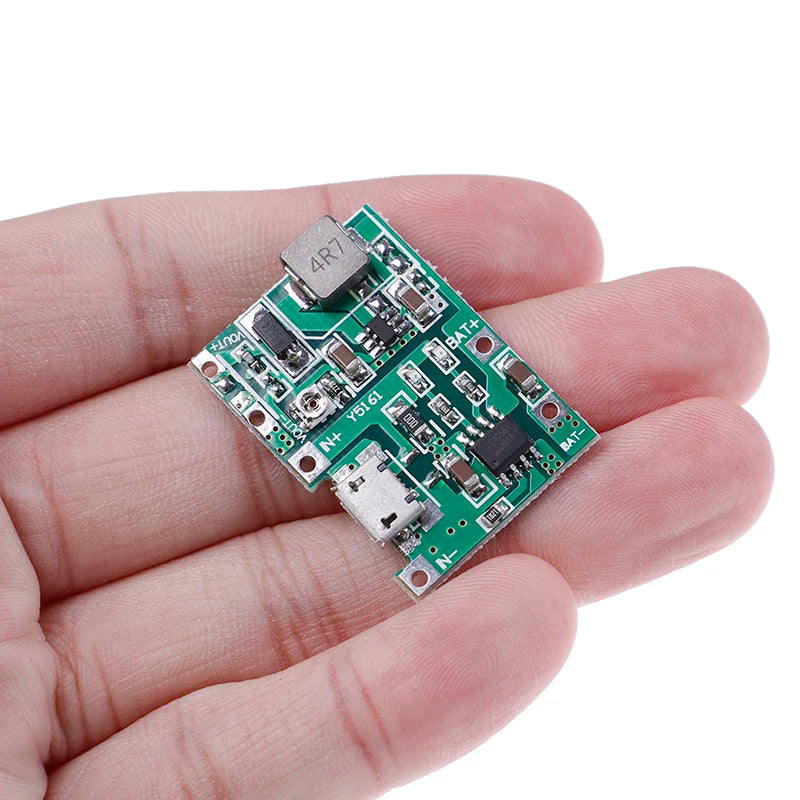

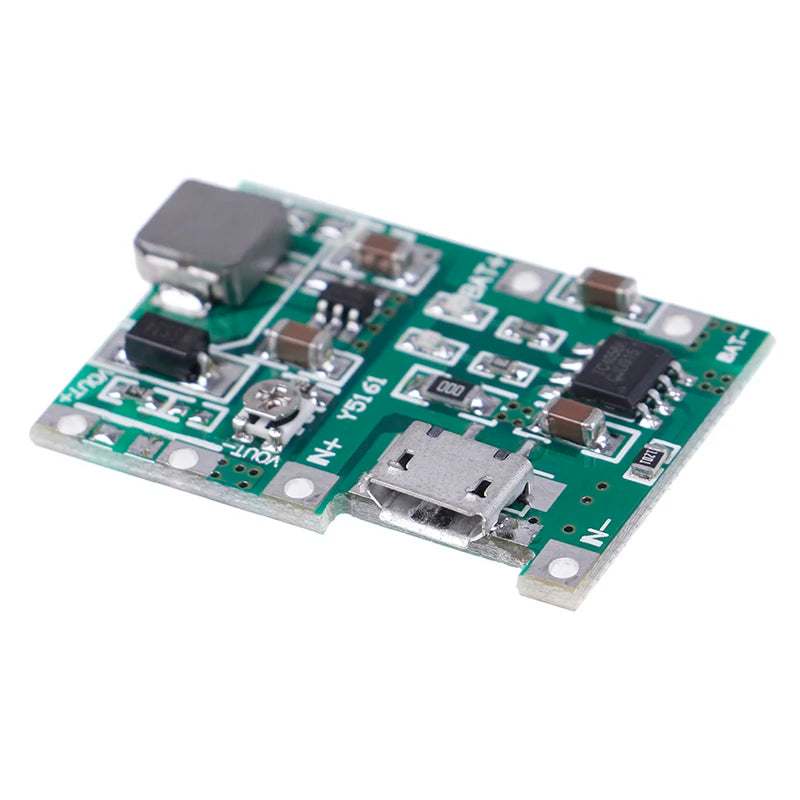

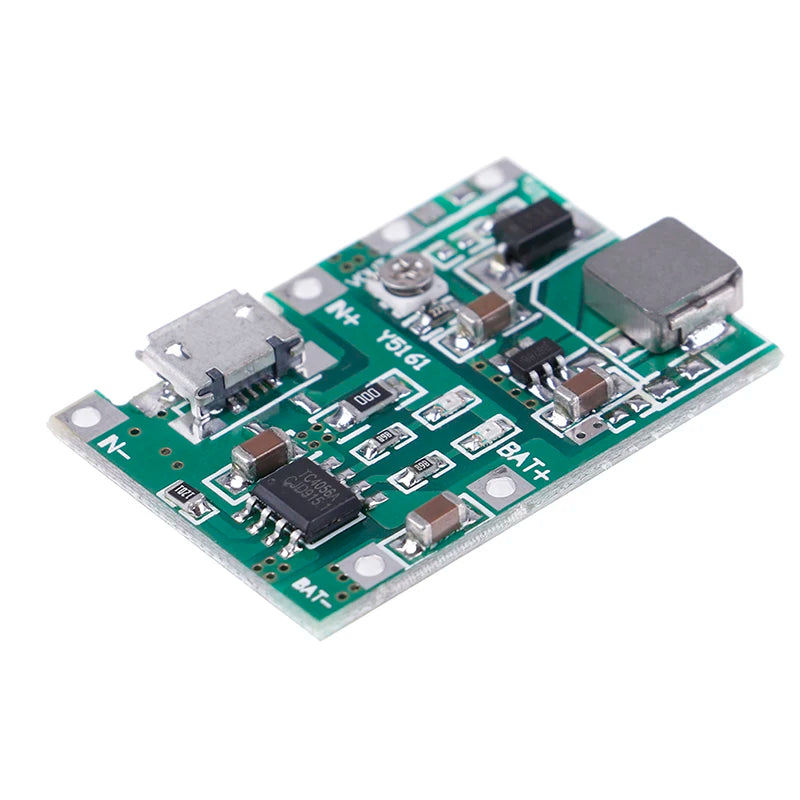

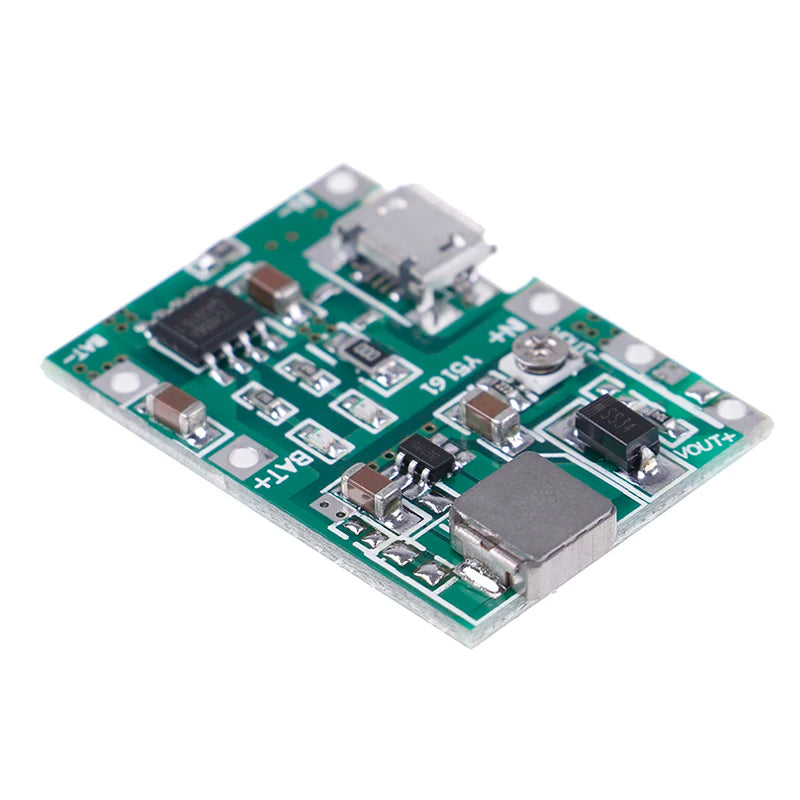

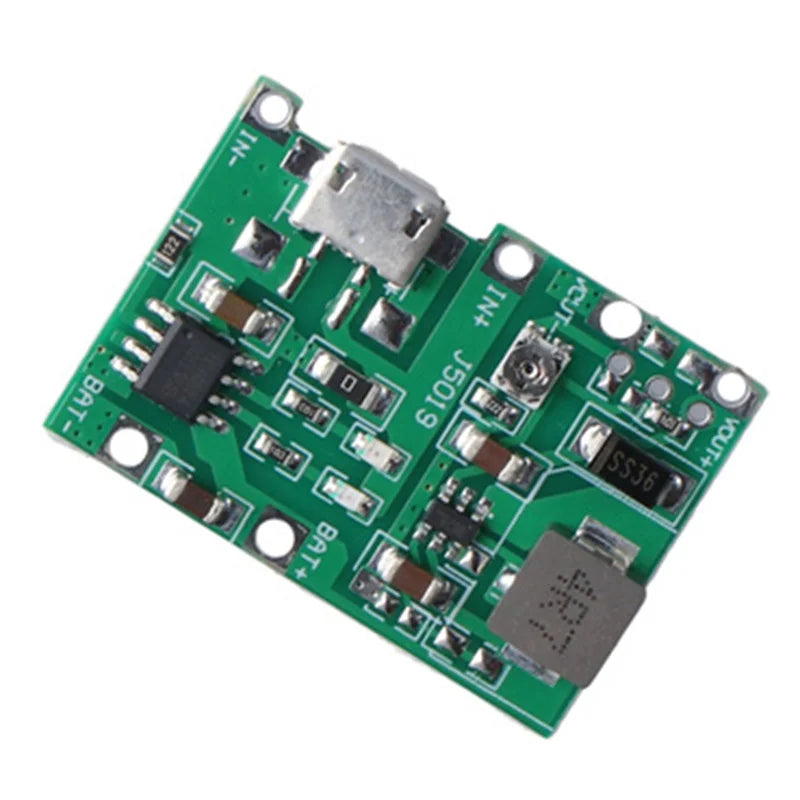

This compact and versatile USB lithium battery charger module is the perfect solution for DIY electronics enthusiasts and makers. It combines a Li-ion/LiPo 18650 battery charger with an adjustable step-up (boost) converter in a single, easy-to-use board. Whether you're building a portable power bank, a solar charging project, or converting a device to run on lithium batteries, this module delivers reliable performance in a tiny package.
Key Specifications
- Input Voltage: 4.5V – 8V DC (USB or solar panel compatible)
- Output Voltage: 4.3V – 27V DC (adjustable)
- Charging Voltage: 4.2V DC (ideal for 3.7V 18650 cells)
- Charging Current: Up to 1A
- Discharging Current: Up to 2A
- Boost Output Range: Selectable steps — 5V, 9V, 12V, 24V and more
- Made in Mainland China
How It Works
Connect your 5V input (such as a USB source or 5V solar panel) to the VIN+ terminal. The BAT+ terminal outputs a regulated 4.2V charge current to your 3.7V 18650 lithium cell. The OUT+ terminal delivers your chosen adjustable boost voltage — making it ideal for powering devices that require 5V, 9V, 12V, or even up to 24V from a single lithium cell.
A great practical use: connect a 5V solar panel to the input, charge an 18650 battery, and simultaneously power a higher-voltage device from the boost output. Also suitable for converting multimeters and other portable tools to run on rechargeable lithium batteries.
Features
- All-in-one charge + boost design — fewer components, cleaner builds
- Wide adjustable output range: 4.3V to 27V DC
- Compatible with standard 3.7V Li-ion / LiPo / 18650 cells
- Compact PCB board — easy to integrate into custom enclosures
- USB-compatible input for convenient bench or solar charging
- Suitable for DIY power banks, robotics, portable electronics & more
Package Contents
- 1× Lithium Li-ion Battery Boost Charger Module (New Version)
Related Products You May Like
- Stainless Steel Cord End Caps with Loop – Jewelry Findings
- 5 Yards 12x8mm O-Shape Aluminum Twist Chain for DIY Projects
- Metal Q Ring Spring Clasps Gold Silver Plated – Connectors
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What types of batteries can this 18650 charger module charge?
A: This module is designed for standard 3.7V lithium-ion (Li-ion) and lithium polymer (LiPo) cells, including popular 18650 format batteries. It delivers a regulated 4.2V charging voltage at up to 1A — the correct charge profile for most 3.7V lithium cells.
Q: Can I use a solar panel as the input source for this charger module?
A: Yes! The module accepts any 4.5V–8V DC input, which makes it fully compatible with 5V solar panels. Simply connect your solar panel to the VIN+ terminal and the module will manage charging your 18650 battery while simultaneously providing adjustable boost output from the OUT+ terminal.
Q: What is the adjustable output voltage range of the step-up boost converter?
A: The boost output is adjustable from 4.3V up to 27V DC, allowing you to select common voltages such as 5V, 9V, 12V, and 24V to power a wide variety of devices and DIY electronics projects from a single lithium cell.
Q: Is this module suitable for building a DIY portable power bank?
A: Absolutely. The combination of a lithium battery charger and a step-up boost converter on one board makes it an excellent foundation for custom DIY power banks. You can charge the internal 18650 cell via USB or solar input and output a stable 5V (or other voltage) to power your devices.
