UWB-1P Ultra Wideband RF Antenna Module – 2.4GHz to 7GHz with SMA-K Interface

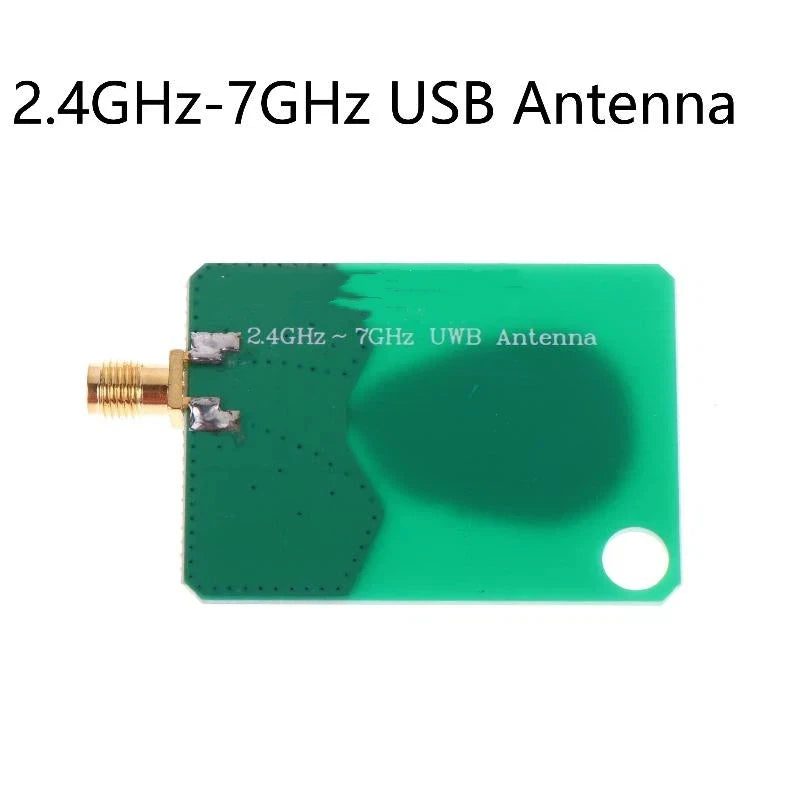

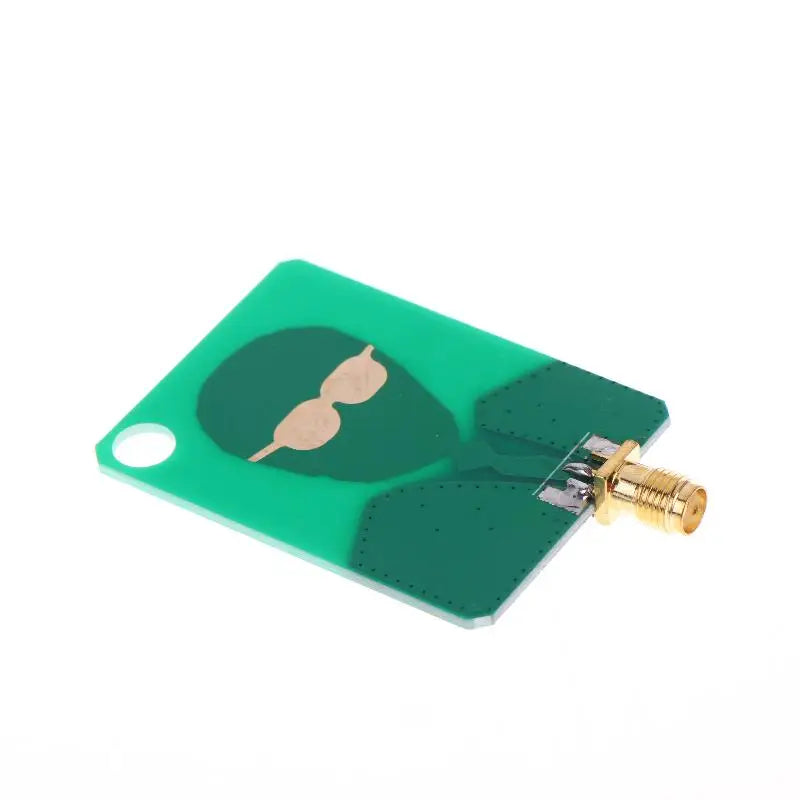

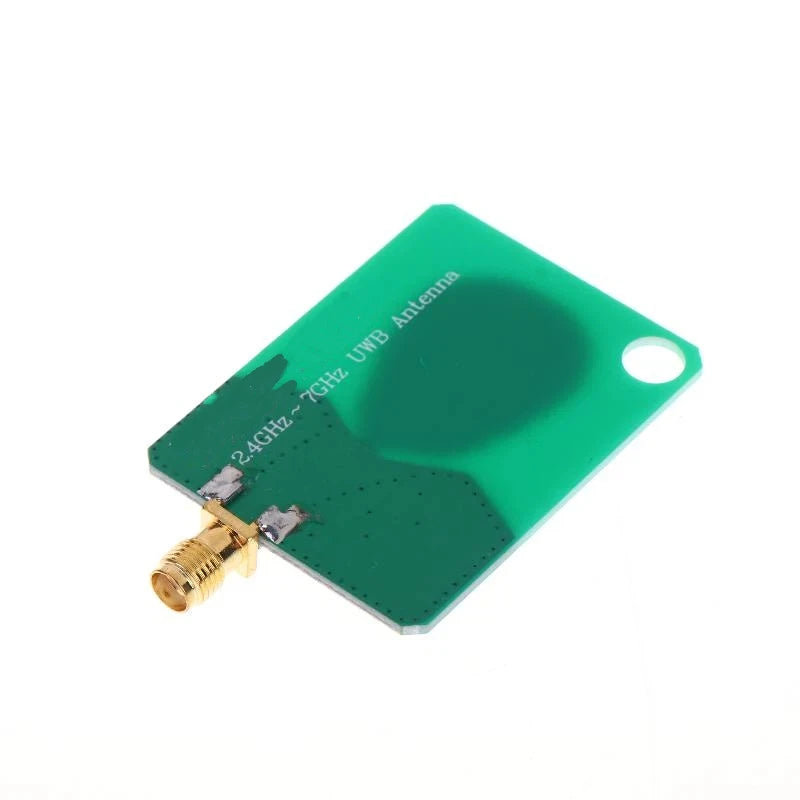

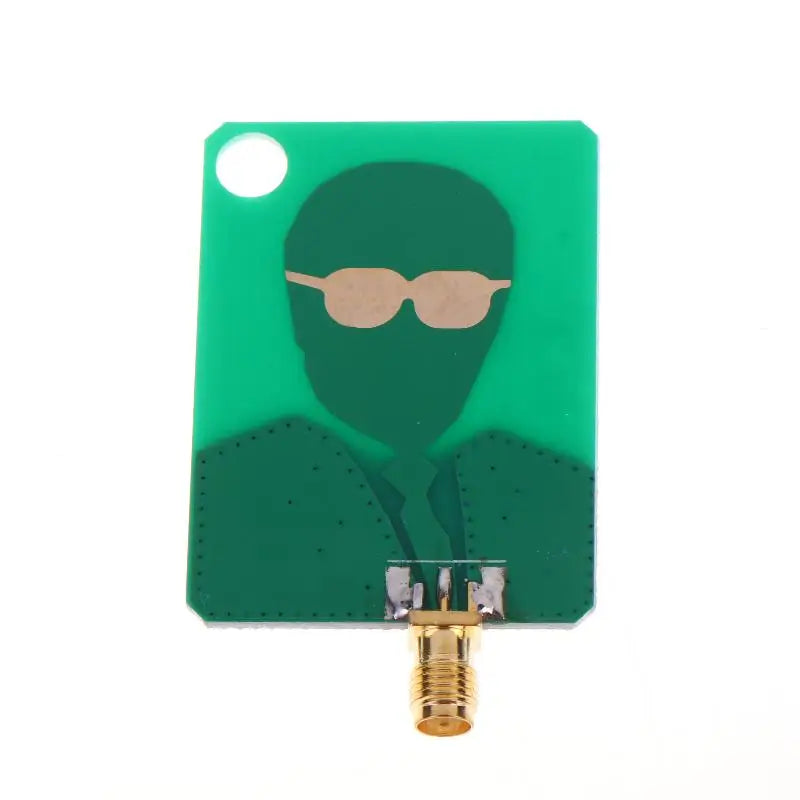

The UWB-1P Ultra Wideband RF Antenna Module delivers exceptional frequency coverage spanning 2.4GHz to 7GHz, making it a versatile solution for engineers, hobbyists, and developers working with UWB positioning, wireless communication, and RF testing applications. With its compact PCB-integrated design and standard SMA-K connector, this module fits seamlessly into a wide variety of communication and electronic devices.

Key Features

• Ultra-Wide Frequency Range (2.4GHz – 7GHz): Supports multiple communication protocols and adapts effortlessly to multi-band device usage scenarios, from Wi-Fi and Bluetooth bands up through UWB frequencies.
• Standard SMA-K Interface: Features a secure, industry-standard SMA-K connector for stable plug-and-unplug performance. Compatible with the vast majority of communication equipment — no adapters needed.

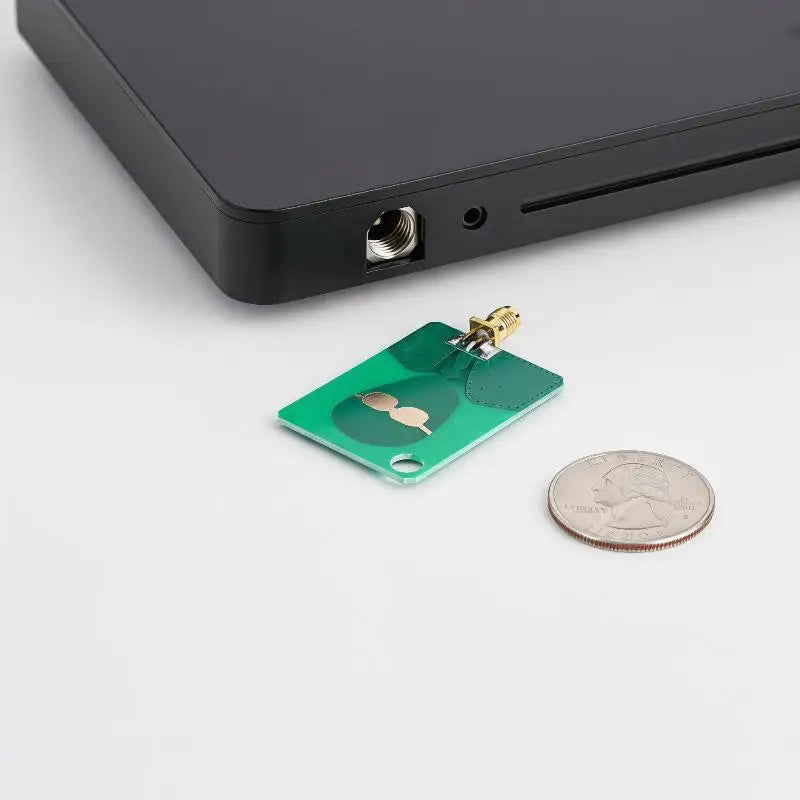

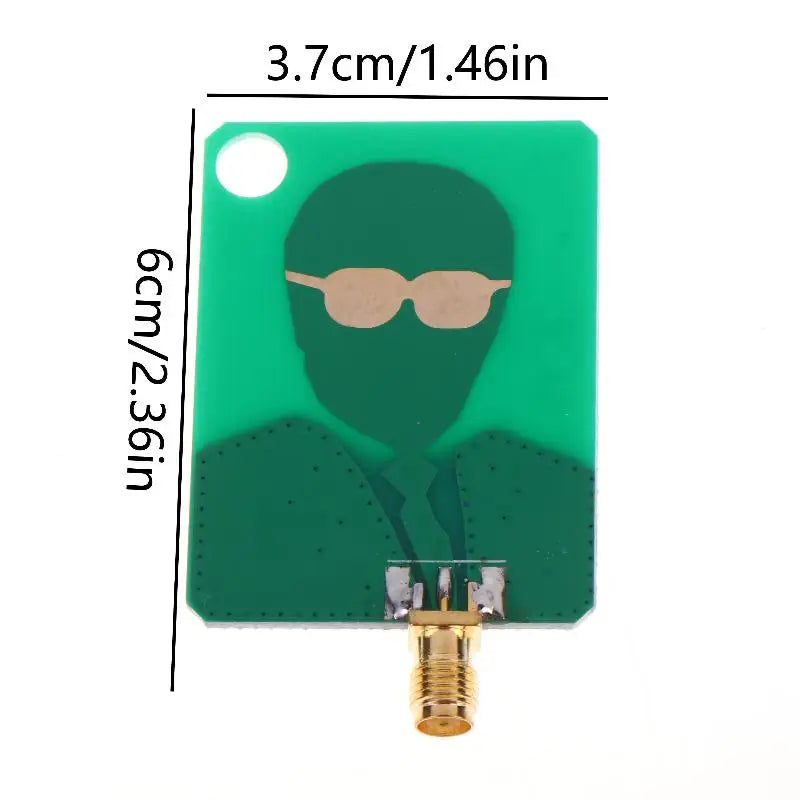

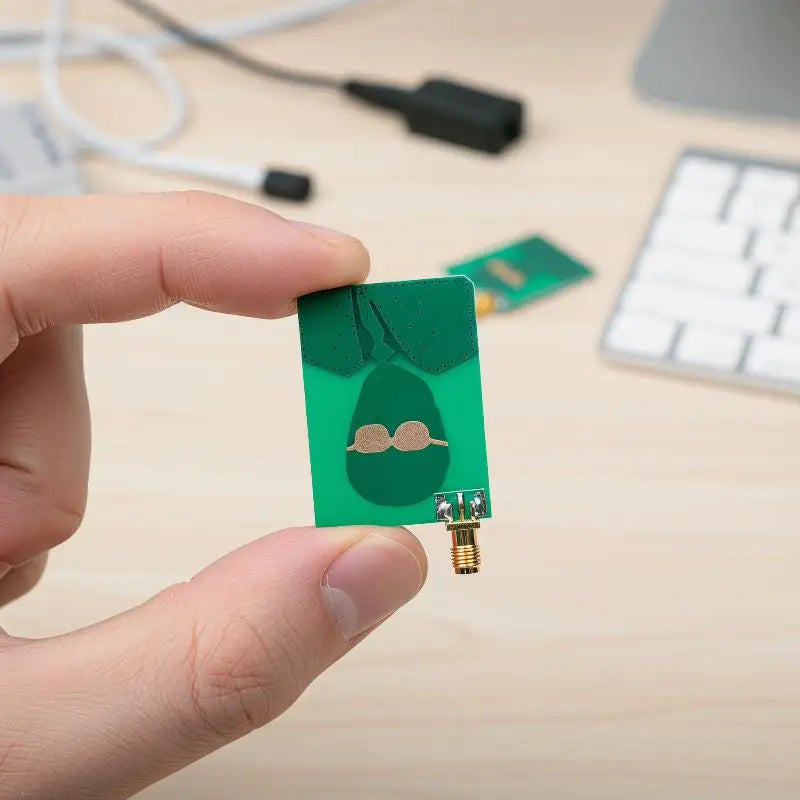

• Compact PCB-Integrated Design: Measuring approximately 6 × 3.7 cm (2.36 × 1.46 in), this lightweight module is easy to integrate into compact enclosures and space-constrained layouts.
• Stable Signal Transmission: Optimized RF circuit design ensures consistent signal quality and strong anti-interference performance, even in complex electromagnetic environments.
• Wide Application Compatibility: Ideal for UWB indoor positioning systems, wireless communication modules, RF frequency testing rigs, and any broadband signal reception application.

Specifications

Applications

• UWB Indoor Positioning & Real-Time Location Systems (RTLS)
• Wireless Communication Prototyping & Development
• RF Signal Testing & Spectrum Analysis
• IoT Devices & Smart Home Modules
• Broadband Receiver Systems

Related Products You May Like

While you're building your next project, check out these popular items from our store:

• Stainless Steel Cord End Caps with Loop – 6pcs Jewelry Findings
• Stainless Steel Flat Disc Spacer Beads Gold Silver – 20-50pcs
• 10pcs Metal Q Ring Spring Clasps Gold Silver Plated Jewelry

Note: Due to manual measurement, there may be a ±5mm deviation in dimensions. Slight color differences may exist between product images and the actual item due to lighting and display settings.

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What frequency range does the UWB-1P RF Antenna Module cover?

A: The UWB-1P covers an ultra-wide frequency range from 2.4GHz to 7GHz, supporting multiple communication protocols including Wi-Fi, Bluetooth, and UWB bands. This makes it suitable for a broad range of wireless communication and RF testing applications.

Q: What type of connector does this RF antenna module use?

A: This module uses a standard SMA-K (female SMA) interface, which is compatible with the vast majority of RF communication equipment and test instruments. The connection is secure and stable, ensuring reliable signal performance.

Q: Can this antenna module be used for UWB indoor positioning systems?

A: Yes, the UWB-1P is specifically designed for UWB (Ultra-Wideband) positioning applications. Its wide frequency coverage, stable RF circuit design, and compact PCB form factor make it an excellent fit for RTLS (Real-Time Location Systems), UWB anchors, and similar positioning hardware.

Q: How small is this antenna module and is it easy to integrate into a device?

A: The module measures approximately 6 × 3.7 cm (2.36 × 1.46 in) and uses a PCB-integrated design, making it lightweight and straightforward to mount in compact enclosures. Its standard SMA-K connector further simplifies integration into existing communication setups.
