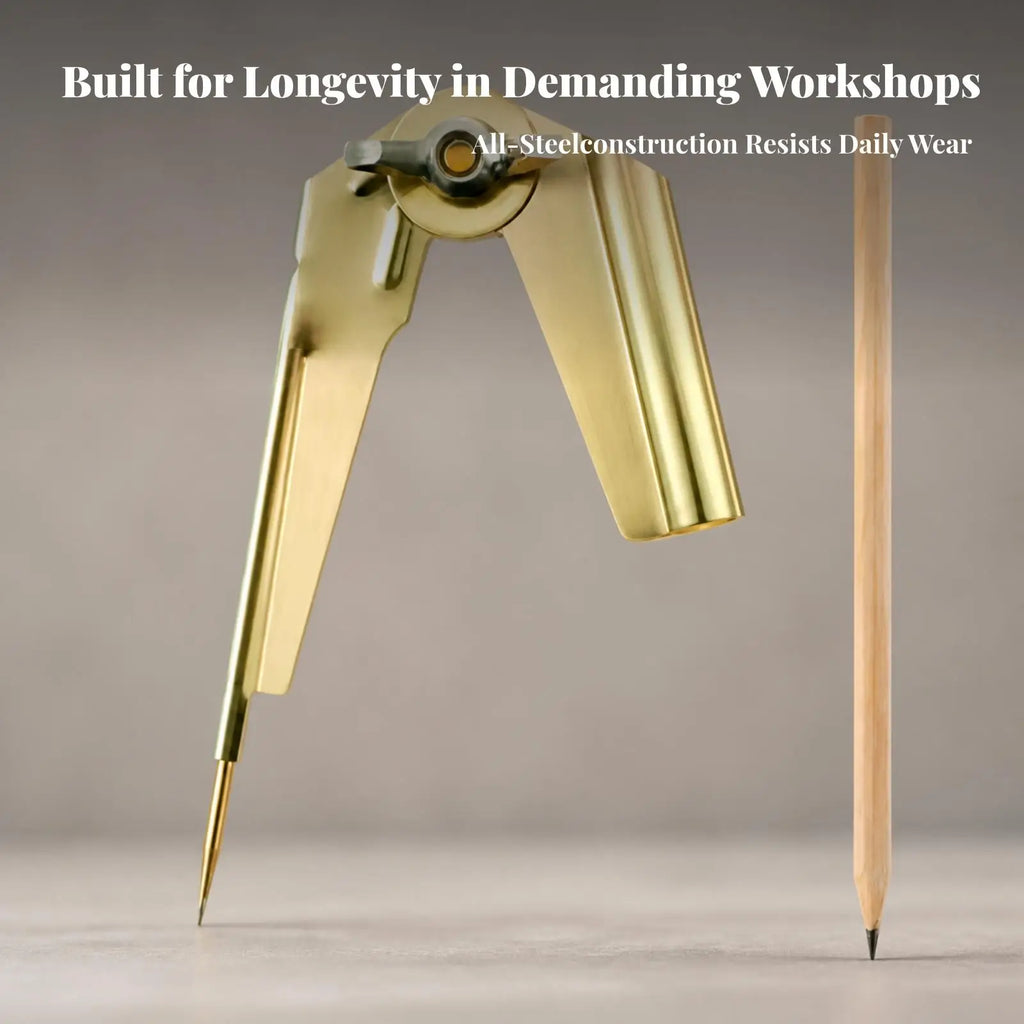

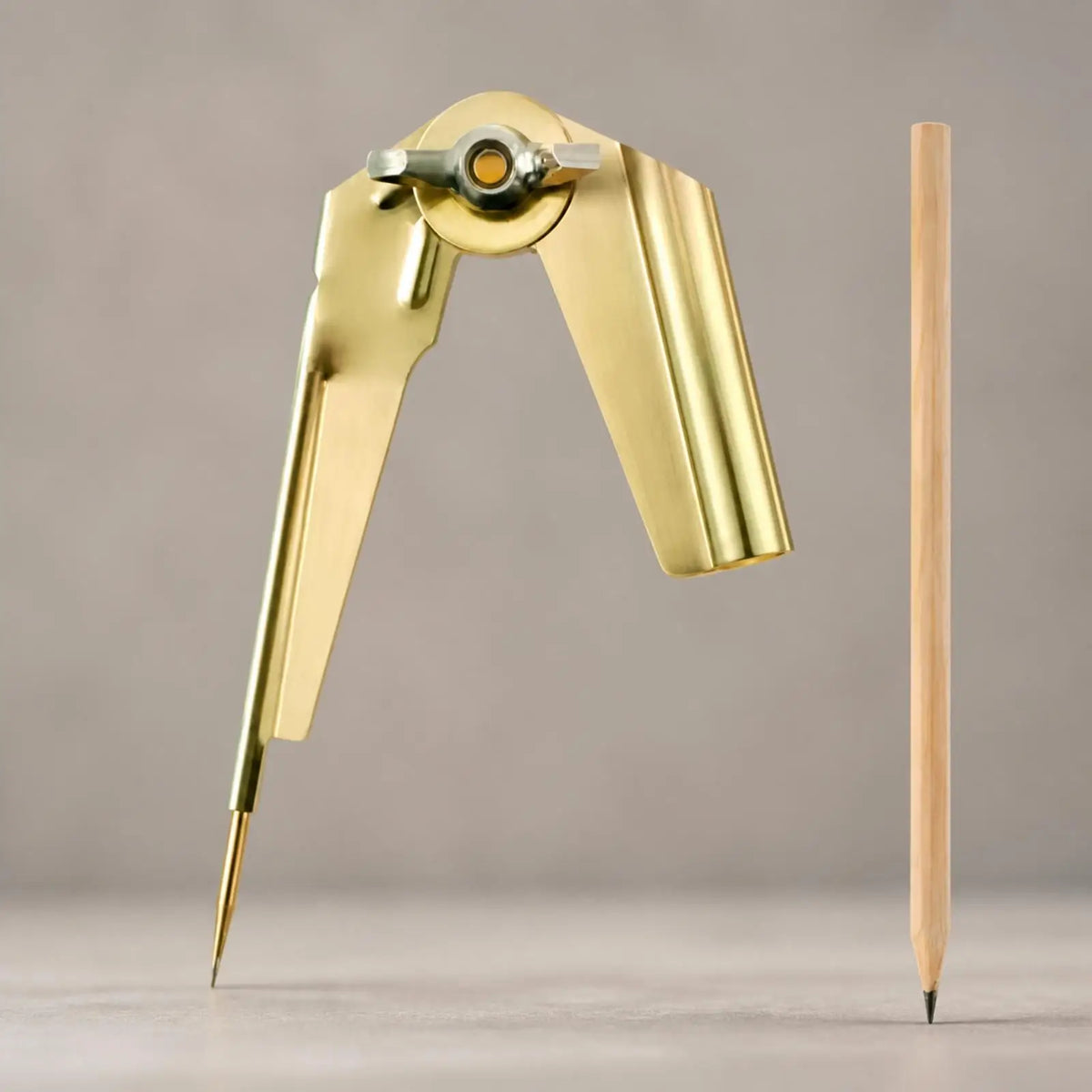

Woodworking Marking Compass with Metal Pencil Holder
Achieve precise, repeatable layouts on every project with this professional-grade woodworking marking compass. Built from durable metal with a polished gold-tone finish, this carpenter's layout tool is engineered for accuracy — making it an essential addition to any workshop, cabinet shop, or jobsite toolkit.
Key Features

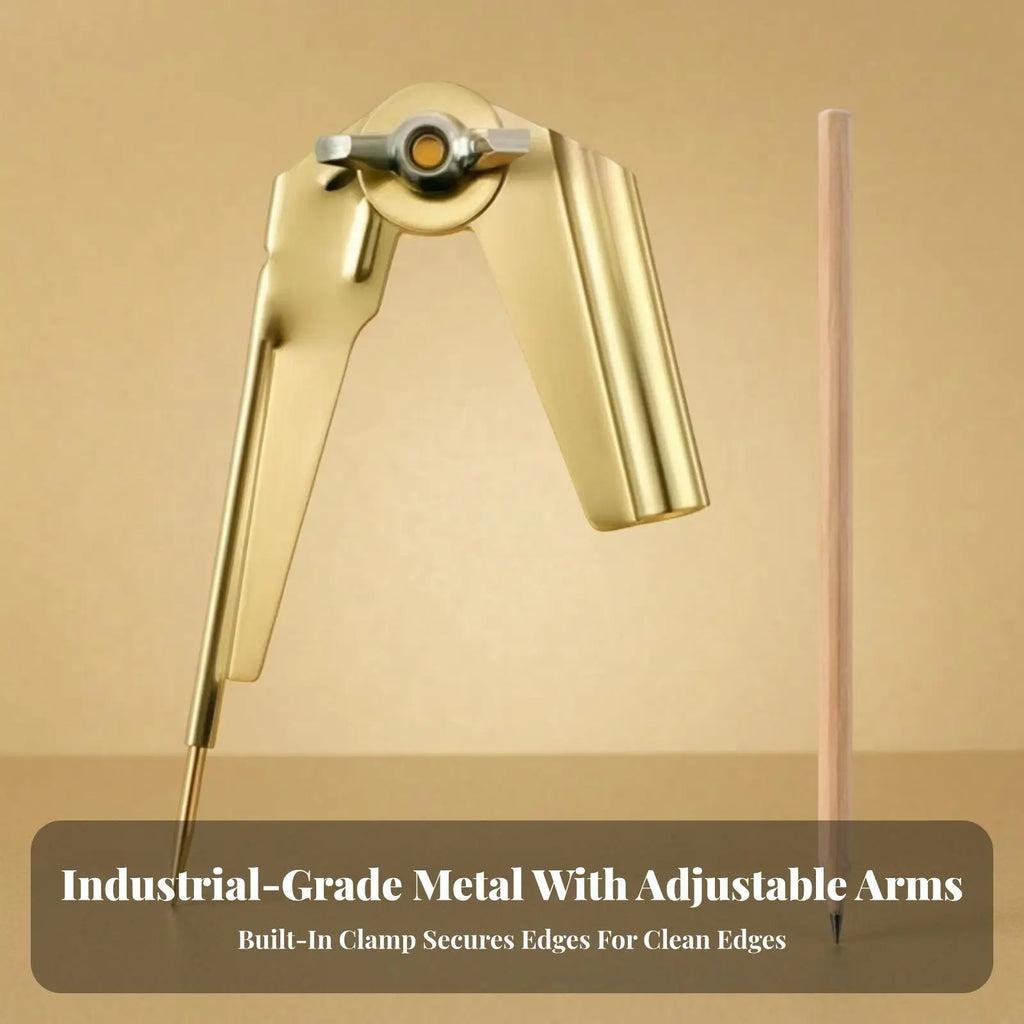

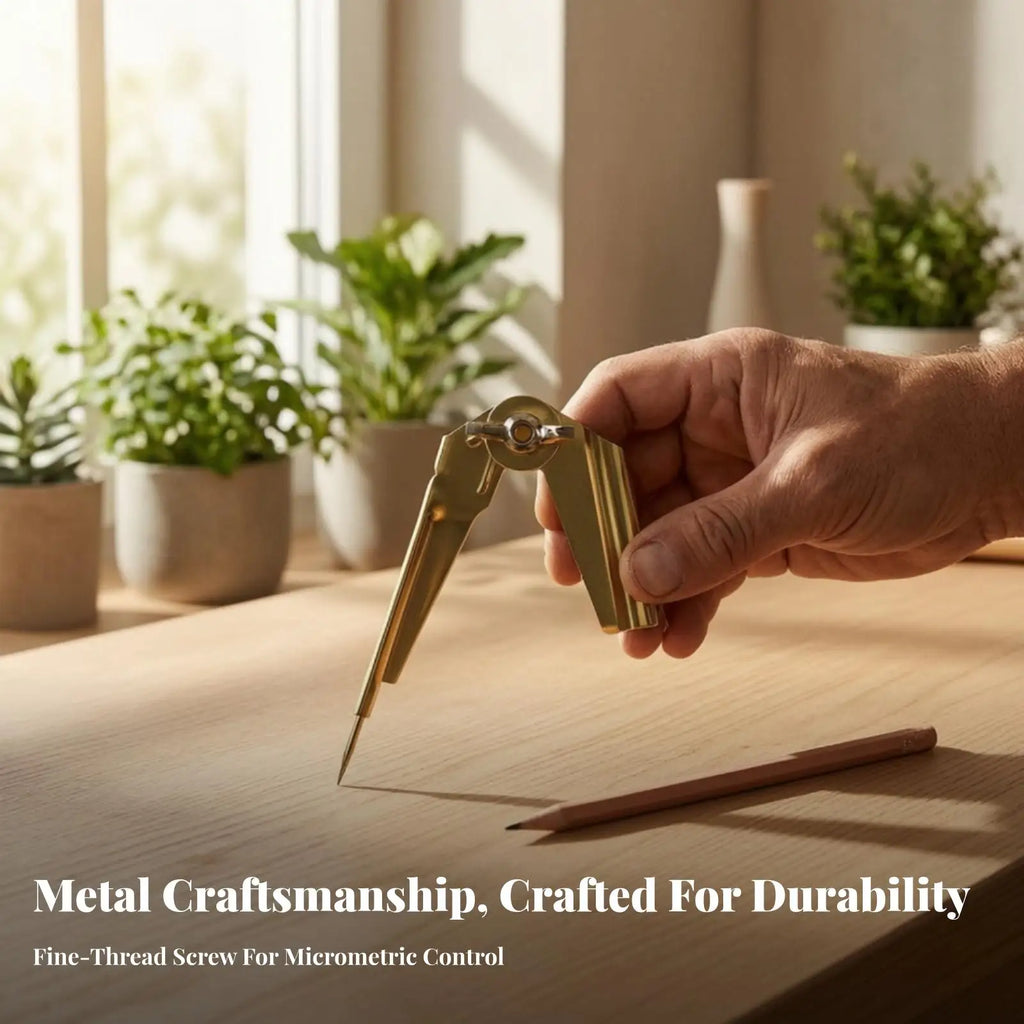

- Adjustable Locking Screw: Set your desired radius or spacing and lock it in place for consistent, repeatable marks across your workpiece.
- Built-In Pencil Holder: The integrated pencil holder secures your pencil firmly, delivering controlled, clean lines every time without slipping or shifting.
- Precision Metal Construction: Crafted from robust metal, this compass withstands daily workshop use while maintaining rigidity for accurate carpentry layouts.
- Gold-Tone Finish: A wear-resistant gold-tone surface gives this tool a polished, professional look while protecting against workshop wear.

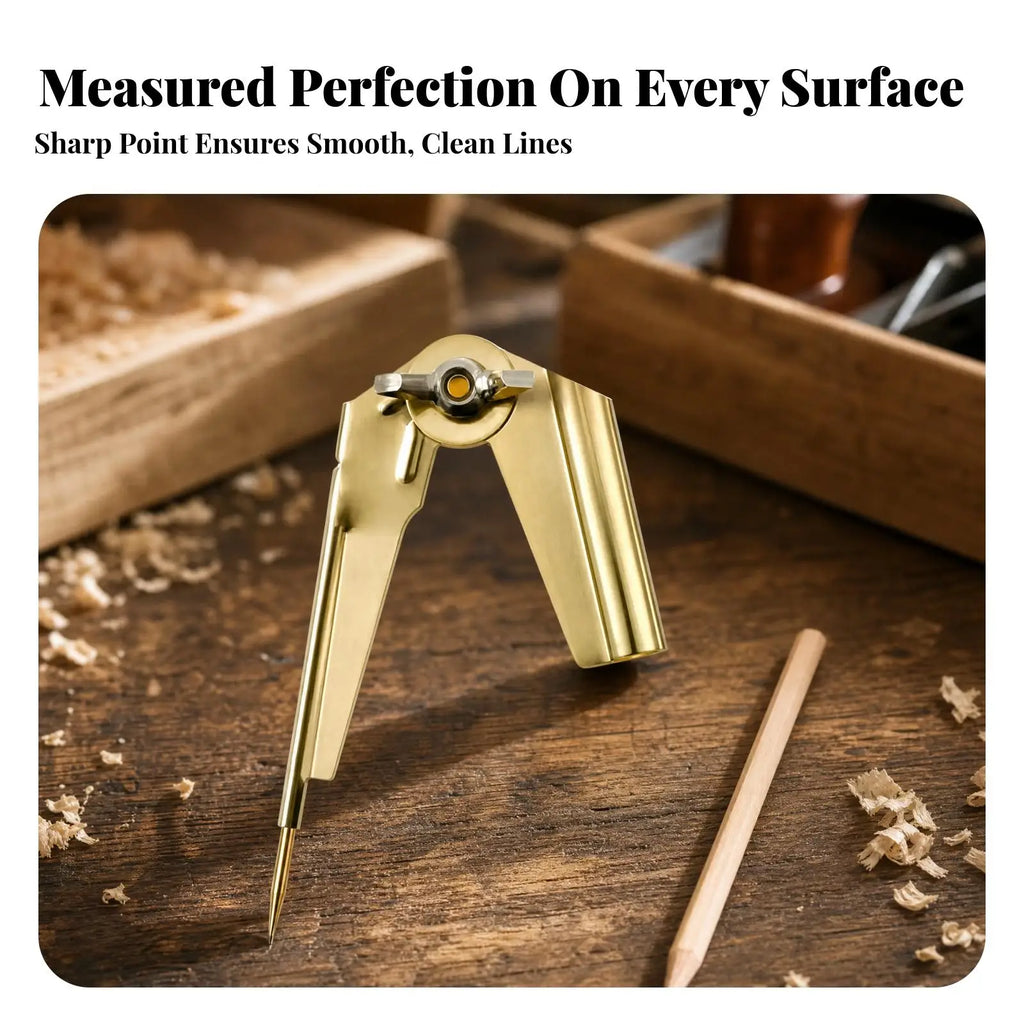

- Pointed Pivot Tip: The sharp, stable pivot point anchors securely into your workpiece so curves and arcs stay perfectly on mark.
- Versatile Applications: Ideal for cabinet installation, furniture fitting, joinery, and general carpentry layout work — draw smooth curves, mark consistent edges, and delineate arcs with ease.
Specifications
| Material | Metal |
| Type | A-Type Gripper Marking Compass |
| Finish | Gold-Tone |
| For Use By | Adults / Professional Craftspeople |
| Country of Origin | Made in China |
Package Includes
- 1 × Cabinet Marking Compass (pencil included)
Note: Please allow for slight measurement variance due to manual measurement. Colour may vary slightly between monitors.
Complete Your Workshop Toolkit
Pair this marking compass with other precision layout and crafting supplies from our store:
- Stainless Steel Flat Disc Spacer Beads Gold Silver – 20-50pcs
- Stainless Steel Cord End Caps with Loop – 6pcs Jewelry Findings
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What materials can this woodworking marking compass be used on?
A: This metal marking compass is designed primarily for use on wood surfaces, including hardwood, softwood, plywood, MDF, and other carpentry materials. Its sharp pivot point anchors cleanly into wood, making it ideal for cabinet installation, furniture fitting, and general joinery layout work.
Q: Can I use my own pencil with this marking compass?
A: Yes. The adjustable metal pencil holder is designed to accommodate standard pencils. Simply insert your pencil, tighten the holder, and you're ready to mark. A pencil is also included in the package.
Q: How do I set and lock the compass to a specific measurement?
A: Open the compass arms to your desired spacing or radius, then tighten the adjustable locking screw firmly. This locks the angle in place so you can make multiple identical marks or arcs across your workpiece without the setting drifting.
